2015 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE

MT Gear Shift Lever: Disassembly

NOTE: Disassemble procedures are only for STI model.

Remove the spring pin from the slider.

Fig 1: Identifying Spring Pin And Slider
Courtesy of SUBARU OF AMERICA, INC.

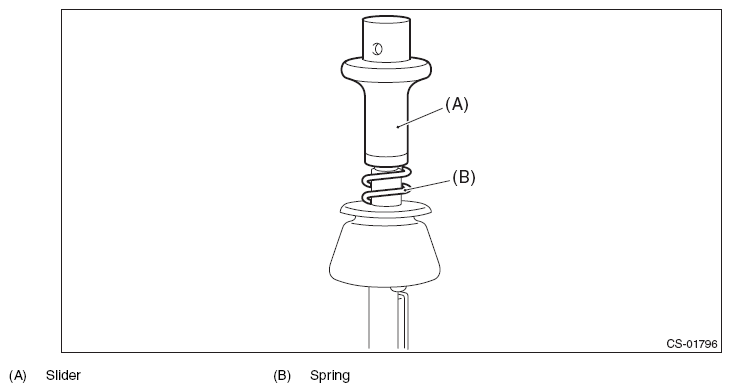

Remove the slider and spring.

Fig 2: Identifying Slider And Spring
Courtesy of SUBARU OF AMERICA, INC.
Cut off the band clip.

Fig 3: Locating Band Clip
Courtesy of SUBARU OF AMERICA, INC.

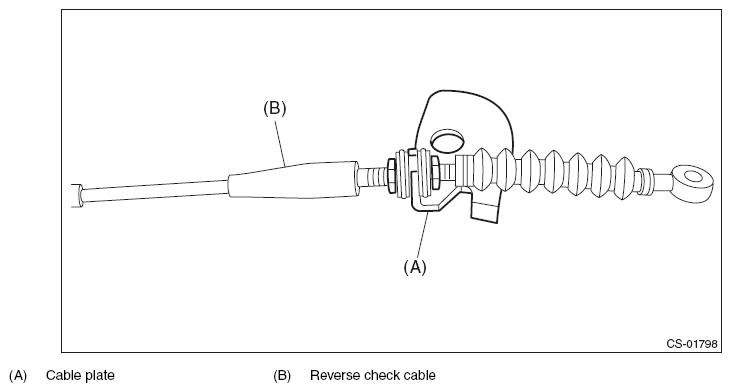

Remove the reverse check cable from the cable plate.

Fig 4: Identifying Reverse Check Cable And Cable Plate
Courtesy of SUBARU OF AMERICA, INC.
Remove the reverse check cable.

Fig 5: Removing Reverse Check Cable
Courtesy of SUBARU OF AMERICA, INC.

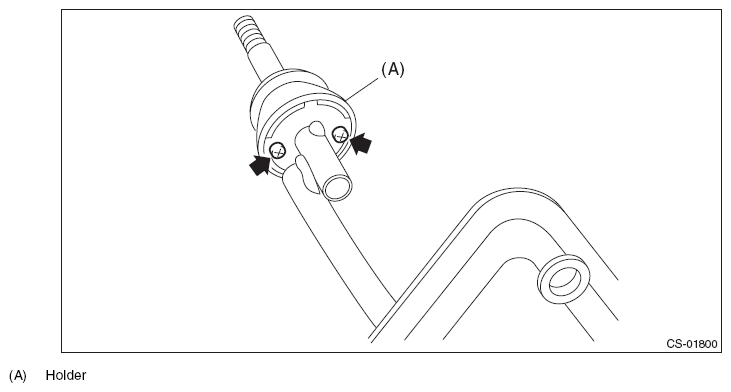

Remove the holder and spring.

Fig 6: Locating Holder And Spring
Courtesy of SUBARU OF AMERICA, INC.
Disassemble the lock wire.
NOTE: Do not reuse the lock wire.
