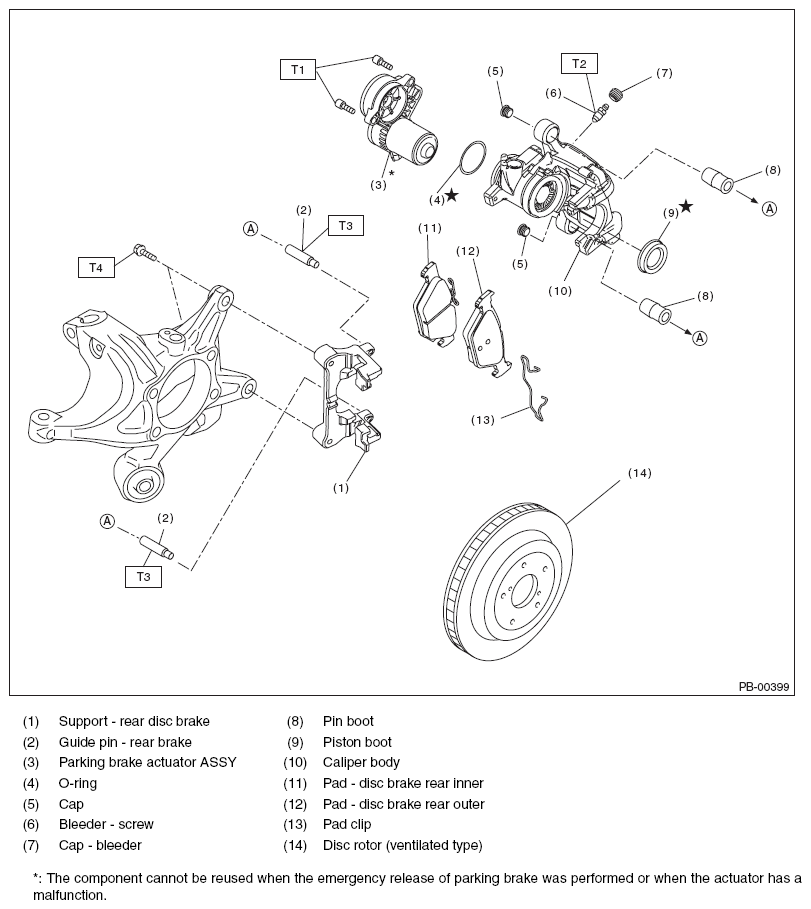

Rear Disc Brake
Tightening torque: N.m (kgf-m, ft-lb)
T1: 8 (0.8, 5.9)
T2: 17 (1.7, 12.5)
T3: 25 (2.5, 18.4)
T4: 66 (6.7, 48.7)
*: The component cannot be reused when the emergency release of parking brake was performed or when the actuator has a malfunction.
