Engine Wiring Harness: Installation
- Set the engine wiring harness to the engine, and connect the connector.NOTE:
- If the clip is damaged, replace it with a new part.

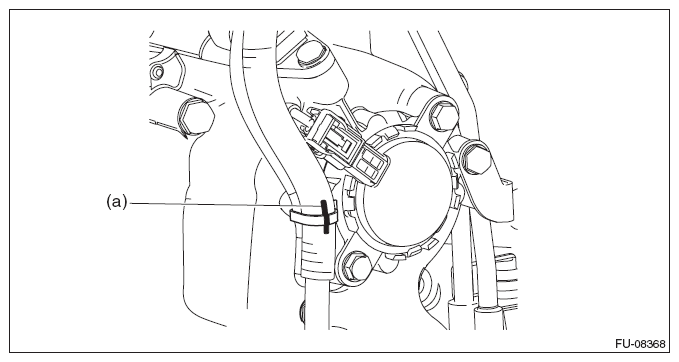

- Before replacing the clip, put an alignment mark (a) on both engine wiring harness and clip to remove the clip, and then align to the alignment mark (a) to attach a new clip to the engine wiring harness.

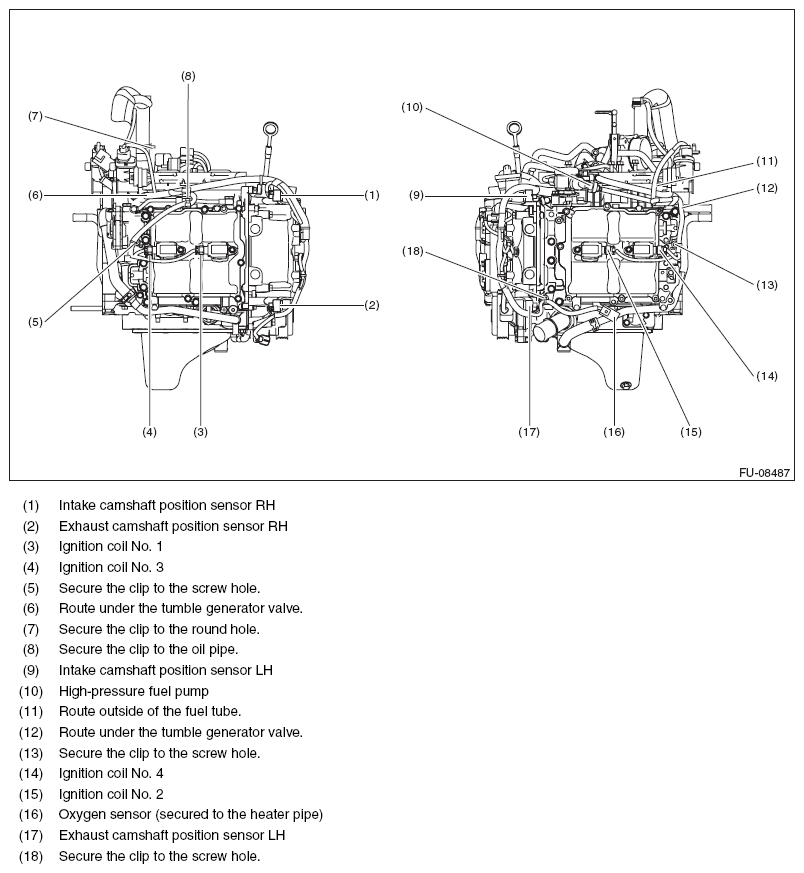

- Structural diagram 1

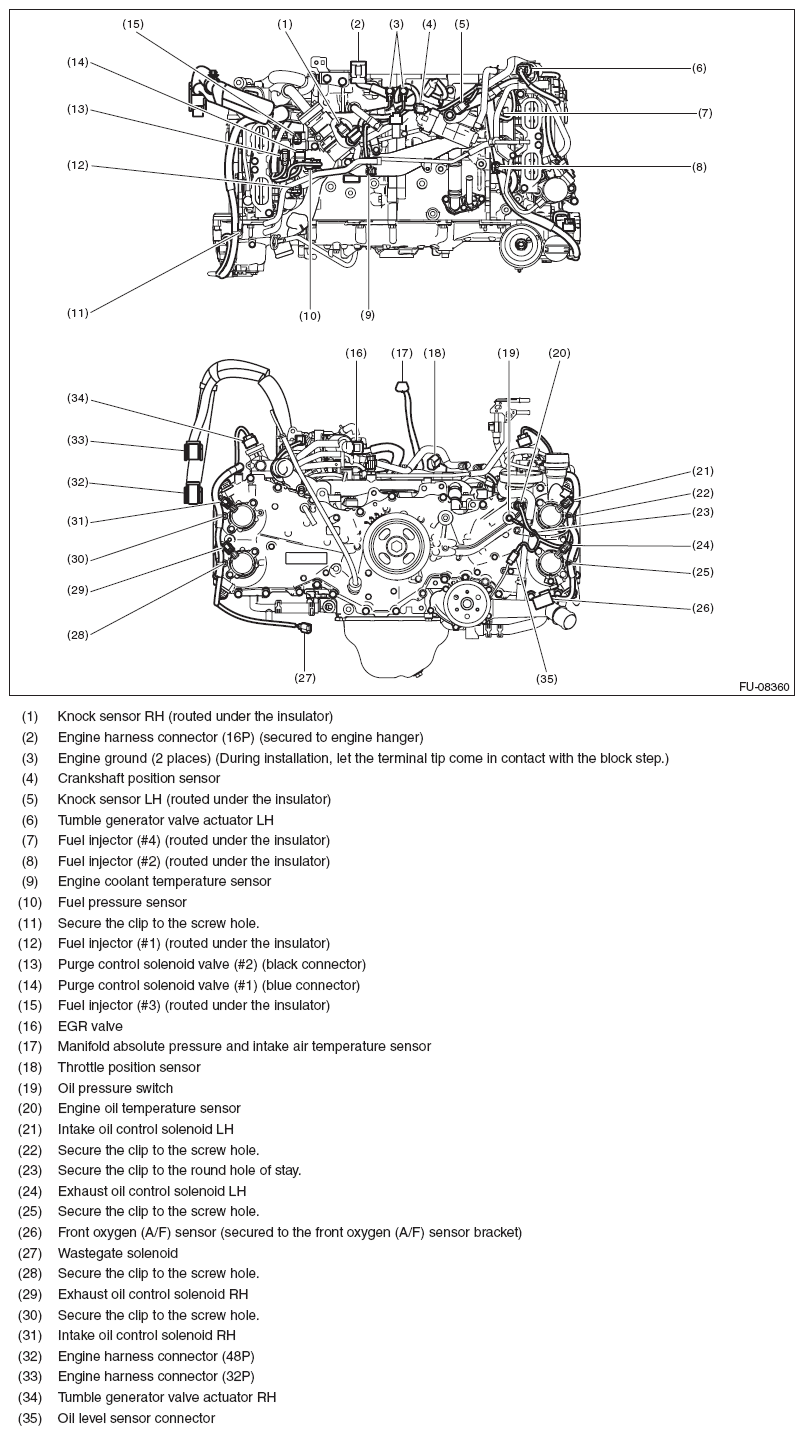

- Structural diagram 2

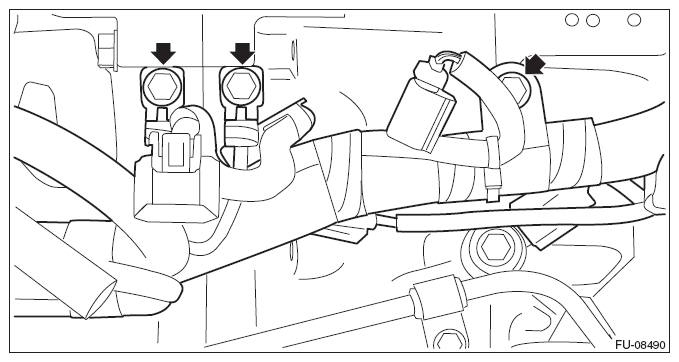

- Install the engine wiring harness.
Tightening torque:
19 N.m (1.9 kgf-m, 14.0 ft-lb)
- Install the engine control module (ECM). <Ref. to INSTALLATION , Engine Control Module (ECM).>
- Install the fuel insulator. <Ref. to INSTALLATION , Fuel Insulator.>
- Install the intake manifold. <Ref. to INSTALLATION , Intake Manifold.>
- Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Note.>
