2015 Subaru WRX BaseFACTORY OEM SERVICE PROCEDURE

RH Side

Install the knock sensor to the cylinder block.
NOTE: The knock sensor should be installed so that the center of the connector is positioned at a 32.5 - 47.5° angle relative to the rear of engine.

Tightening torque:

24 N.m (2.4 kgf-m, 17.7 ft-lb)

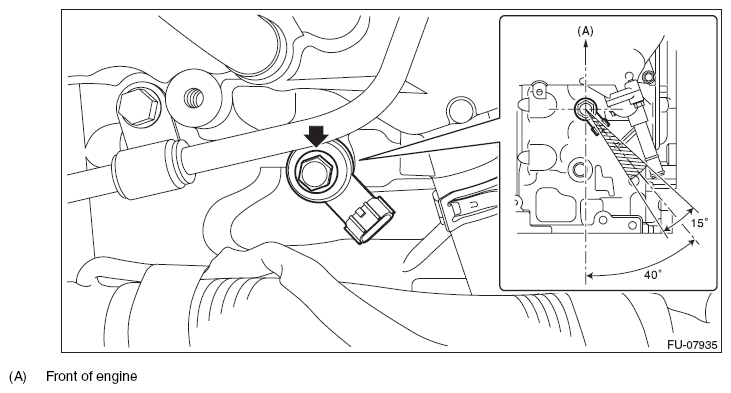

Fig 1: Identifying Knock Sensor Connector Tightening Angle (RH Side)
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the knock sensor.

Fig 2: Locating Knock Sensor Connector (RH Side)
Courtesy of SUBARU OF AMERICA, INC.
Install the fuel pipe insulator No. 3. <Ref. to FUEL PIPE INSULATOR NO. 3 , INSTALLATION, Fuel Insulator.>
Install the intake manifold. <Ref. to INSTALLATION , Intake Manifold.>
Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Note.>
Install the collector cover. <Ref. to INSTALLATION , Collector Cover.>
