2015 Subaru Outback 2.5iFACTORY OEM SERVICE PROCEDURE

Select Lever: Installation

  1. Insert the indicator light terminal to the harness connector.

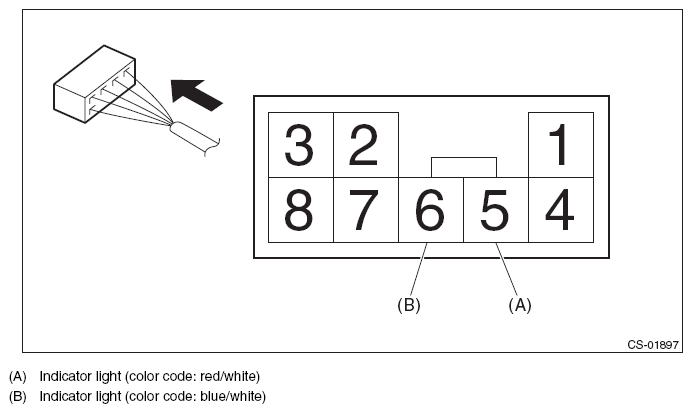

    Fig 1: Inserting Indicator Light Terminal To Harness Connector
    G10274691Courtesy of SUBARU OF AMERICA, INC.
  2. Install the housing and the blind.

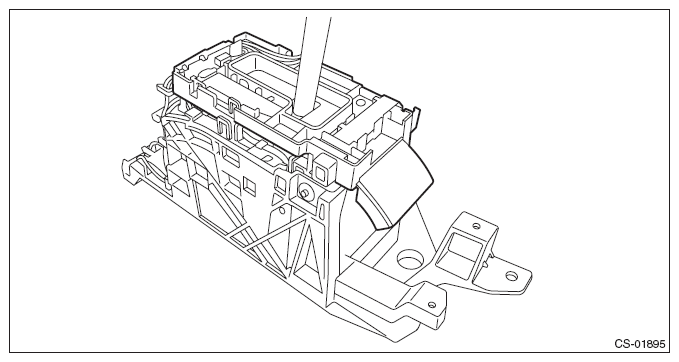

    Fig 2: Identifying Housing And Blind
    G10274689Courtesy of SUBARU OF AMERICA, INC.
  3. Install the harness to the select cover COMPL.

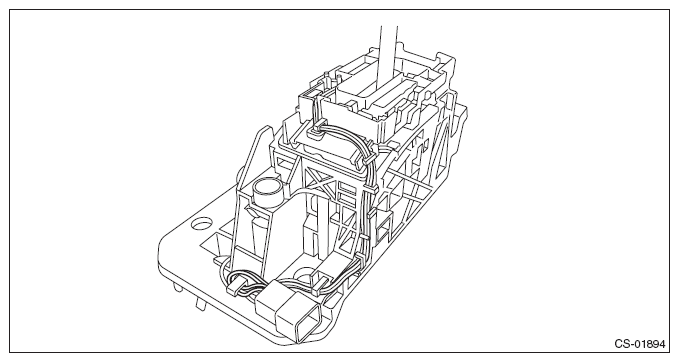

    Fig 3: Identifying Select Lever COMPL Harness
    G10274688Courtesy of SUBARU OF AMERICA, INC.
  4. Install the harness connector to the select cover COMPL.

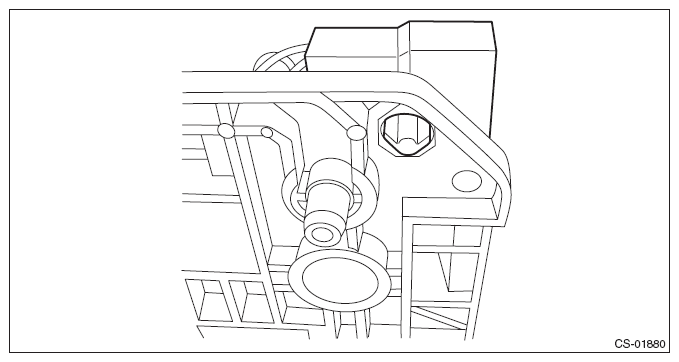

    Fig 4: Identifying Select Cover COMPL
    G10274687Courtesy of SUBARU OF AMERICA, INC.
  5. Install the indicator cover.

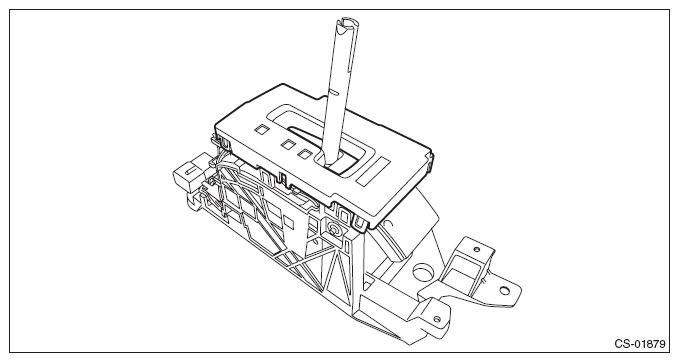

    Fig 5: Identifying Indicator Cover
    G10274686Courtesy of SUBARU OF AMERICA, INC.
  6. Install the select lever COMPL after setting it to the vehicle body.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

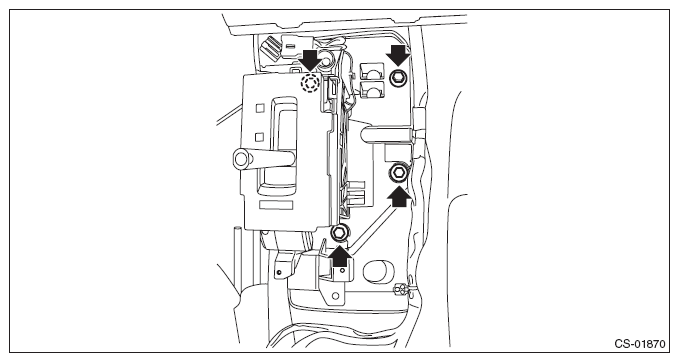

    Fig 6: Locating Select Lever COMPL Bolts
    G10274684Courtesy of SUBARU OF AMERICA, INC.
  7. Connect the harness connector.

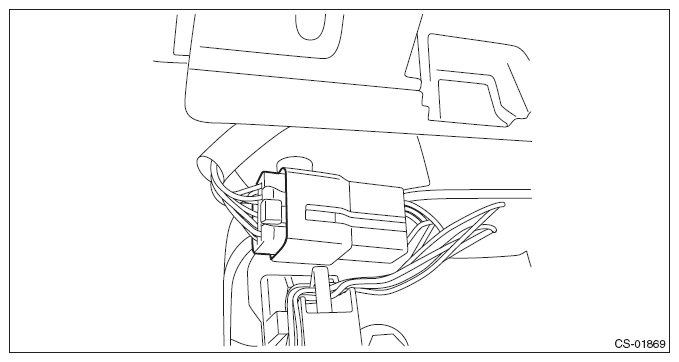

    Fig 7: Identifying Harness Connector
    G10274683Courtesy of SUBARU OF AMERICA, INC.
  8. Install the harness clip to the select lever COMPL.

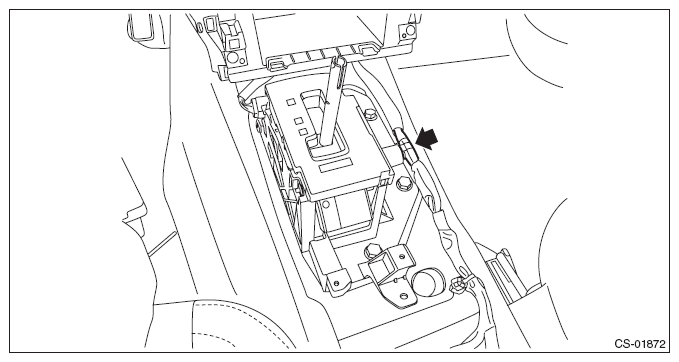

    Fig 8: Locating Select Lever COMPL Harness Clip
    G10274698Courtesy of SUBARU OF AMERICA, INC.
  9. Shift the select lever to "N" range.
  10. Install the console front side cover assemblies RH and LH. <Ref. to INSTALLATION , Console Box.>
  11. Install the console box. <Ref. to INSTALLATION , Console Box.>
  12. Install the console front cover assembly. <Ref. to INSTALLATION , Console Box.>
  13. Insert the rod COMPL in the direction shown in the figure.
    CAUTION: Be careful not to insert the rod COMPL in the wrong direction by 90°.
