2015 Subaru Outback 2.5iFACTORY OEM SERVICE PROCEDURE

Select Cable: Removal

  1. Shift the select lever to "N" range.
  2. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
  3. Lift up the vehicle.
  4. Remove the center exhaust pipe. (2.5 L model) <Ref. to REMOVAL , Center Exhaust Pipe.>
  5. Remove the front exhaust pipe and rear exhaust pipe. (3.6 L model) <Ref. to REMOVAL , Front Exhaust Pipe.> <Ref. to REMOVAL , Rear Exhaust Pipe.>
  6. Remove the center exhaust cover.
    Fig 1: Identifying Center Exhaust Cover
    G10274676Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the snap pin and washer from the shifter arm and remove the select cable from the shifter arm.

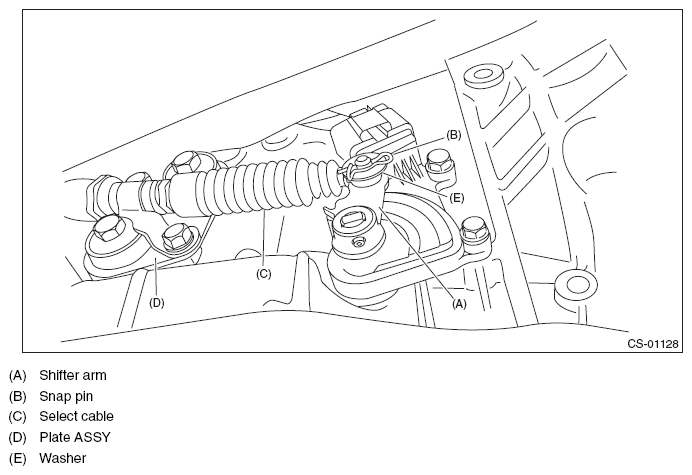

    Fig 2: Identifying Shifter Arm, Snap Pin, Select Cable, Plate Assembly, Washer
    G10274704Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the plate assembly from the transmission case.

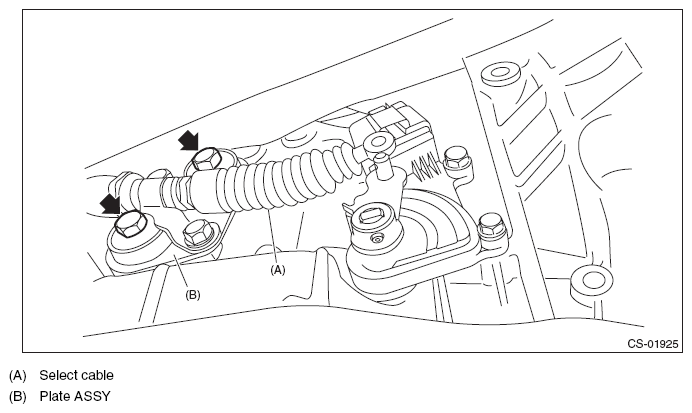

    Fig 3: Locating Transmission Case Bolts
    G10274705Courtesy of SUBARU OF AMERICA, INC.
  9. Disconnect the cable from arm assembly.

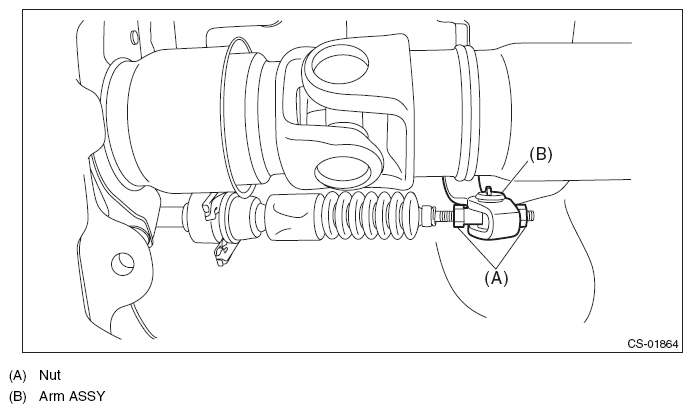

    Fig 4: Identifying Arm Assembly And Cable
    G10274706Courtesy of SUBARU OF AMERICA, INC.
  10. Raise the claw of clamp to remove the cable from bracket.

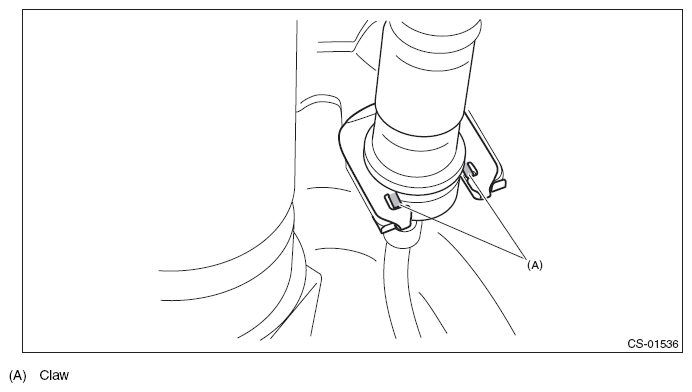

    Fig 5: Identifying Bracket Cable Claw
    G10274707Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the select cable from plate assembly.
