Drive Cycle F
| DTC | Item | Condition |
|---|---|---|
| P0111 | Intake Air Temperature Sensor Range/Performance Problem |
|
Diagnostic procedure:
- With the ignition switch ON (engine stopped), read the values in «Coolant Temp.» and «Intake Air Temp.». <Ref. to DISPLAY CURRENT ENGINE DATA , OPERATION, Subaru Select Monitor.>
- If the values from step 1) satisfy the following conditions, idle the engine for two minutes or more.
Condition:
|Engine coolant temperature - Intake air temperature| ≤ 5°C (9°F)
NOTE:- If the conditions are not satisfied, turn the ignition switch to OFF and wait until the parameters are satisfied.
- Hold the select lever in "P" range or "N" range at idling.

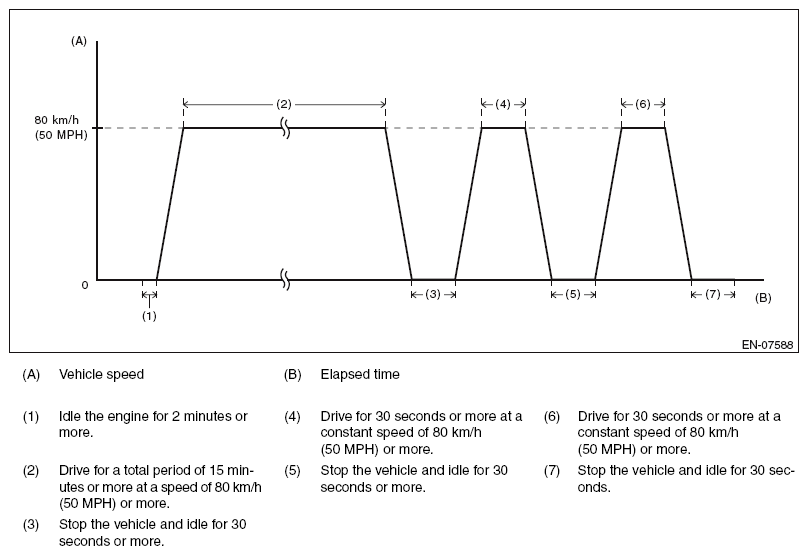

- Drive according to the drive pattern described below.
