Intake Manifold Assembly: Installation

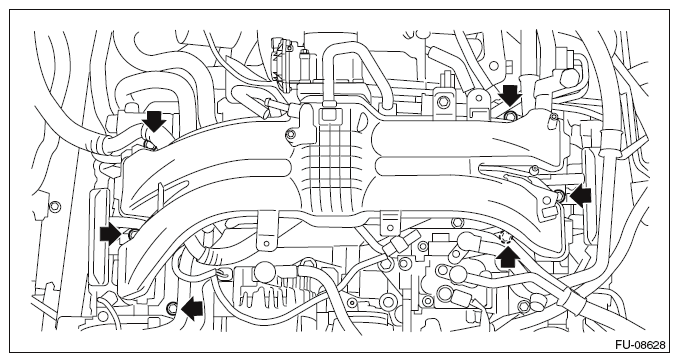

- Install the intake manifold assembly onto cylinder head.NOTE:
- Use a new gasket.
- Be careful not to let the engine harness be caught by the parts.
Tightening torque:
25 N.m (2.5 kgf-m, 18.4 ft-lb)
- Connect the fuel delivery tube and evaporation hose.
- Connect the evaporation hose (C) to the fuel pipe assembly.
- Connect the connector of the fuel delivery tube (B) to the fuel pipe assembly, and secure the fuel delivery tube using clip (A).
CAUTION:- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- Make sure that the quick connector is securely connected.
