2015 Subaru Forester 2.0XT PremiumFACTORY OEM SERVICE PROCEDURE

Select Cable: Removal

  1. Shift the select lever to "N" range.
  2. Disconnect the ground cable from battery.
  3. Lift up the vehicle.
  4. Remove the center exhaust pipe. (Non-turbo model) < Ref. to REMOVAL , Center Exhaust Pipe. >
  5. Remove the center exhaust pipe (rear). (Turbo model) < Ref. to REMOVAL , Center Exhaust Pipe. >
  6. Remove the center exhaust cover.
    Fig 1: Identifying Center Exhaust Cover
    G09481150Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the snap pin and washer from the shifter arm.

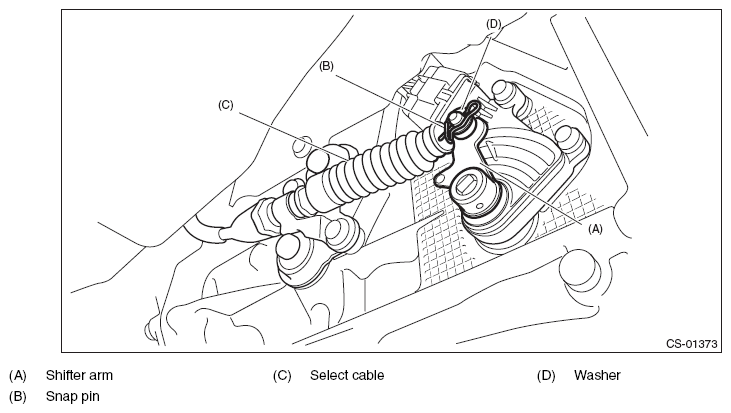

    Fig 2: Identifying Shifter Arm, Select Cable, Washer And Snap Pin
    G09481192Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the plate assembly from the transmission case.

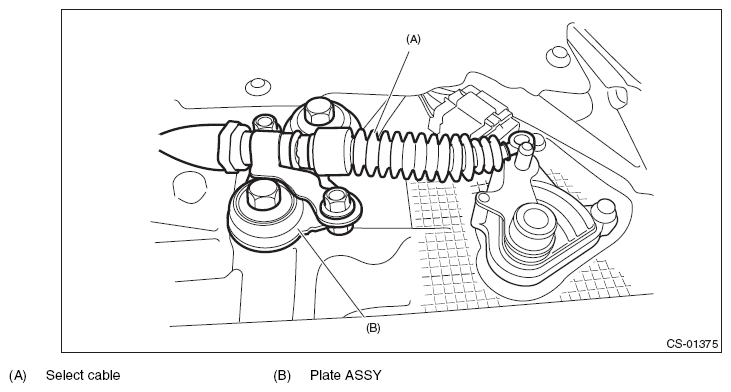

    Fig 3: Identifying Select Cable And Plate Assembly
    G09481193Courtesy of SUBARU OF AMERICA, INC.
  9. Disconnect the cable from arm COMPL.

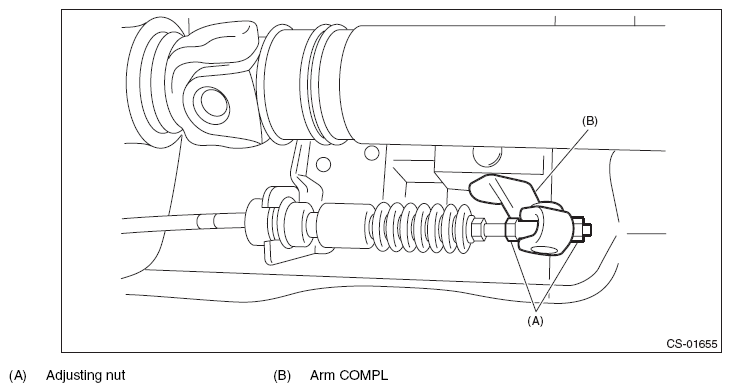

    Fig 4: Identifying Arm COMPL And Adjusting Nut
    G09481194Courtesy of SUBARU OF AMERICA, INC.
  10. Raise the claw of clamp to remove the cable from bracket.
    Fig 5: Identifying Cable Clamp Claw
    G09481195Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the select cable from plate assembly.
