2014 Subaru TribecaFACTORY OEM SERVICE PROCEDURE
Select Lever: Removal
- Disconnect the ground cable from battery.
- Shift the select lever to "N" range.
- Lift up the vehicle.
- Remove the rear exhaust pipe and muffler. < Ref. to REMOVAL , Rear Exhaust Pipe. > < Ref. to REMOVAL , Muffler. >
- Remove the heat shield cover.

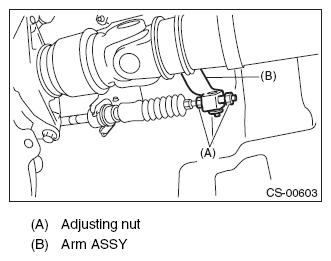

- Remove the cable from arm assembly.

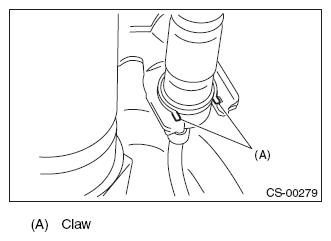

- Raise the claw of clamp and remove the cable.
- Lower the vehicle.
- Remove the console box. < Ref. to REMOVAL , Console Box. >
- Remove the center console. < Ref. to REMOVAL , Center Console. >
- Remove all harnesses from the select lever.
- Disconnect the connectors, and then remove the four bolts to take out the select lever assembly from vehicle body.
