2014 Subaru TribecaFACTORY OEM SERVICE PROCEDURE

Select Cable: Removal

Shift the select lever to "N" range.
Disconnect the ground cable from battery.
Lift up the vehicle.
Remove the front and rear exhaust pipes and the muffler. < Ref. to REMOVAL , Front Exhaust Pipe. > < Ref. to REMOVAL , Rear Exhaust Pipe. > < Ref. to REMOVAL , Muffler. >
Remove the heat shield cover.
Remove the snap pin and washer from range select lever.

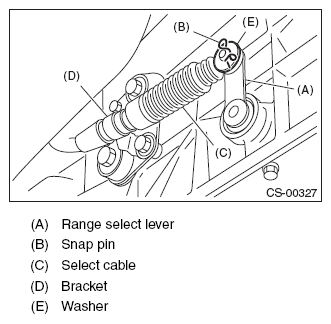

Fig 1: Identifying Range Select Lever, Snap Pin, Select Cable, Bracket And Washer
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate assembly from the transmission case.

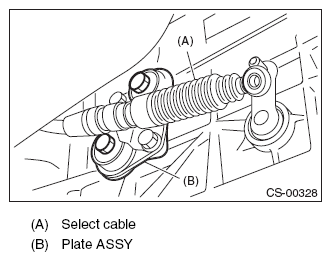

Fig 2: Identifying Plate ASSY And Select Cable
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the cable from arm assembly.

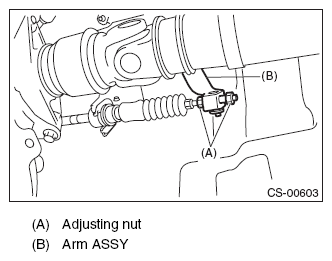

Fig 3: Identifying Arm ASSY And Adjusting Nut
Courtesy of SUBARU OF AMERICA, INC.
Raise the claw of clamp to remove the cable from bracket.

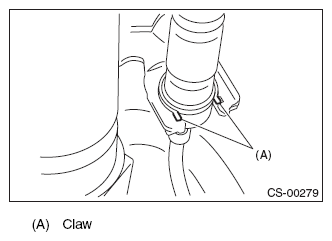

Fig 4: Identifying Clamp Claw
Courtesy of SUBARU OF AMERICA, INC.
Remove the select cable from plate assembly.
