Transmission Control Module (TCM): Installation
- Install the TCM to the bracket.CAUTION: To avoid the damage to bracket and TCM, do not remove after installing TCM to bracket. If installed by mistake, the part must be replaced with a new part.

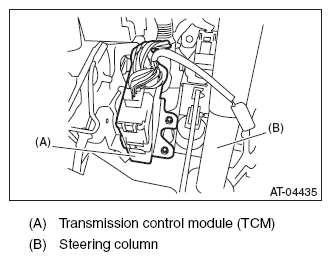

- Install the TCM.
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
- Connect the connector to TCM.
- Install in the reverse order of removal.
- Perform Clear Memory 2 operation. < Ref. to CLEAR MEMORY MODE , OPERATION, Subaru Select Monitor. >
- Perform the diagnosis again. < Ref. to PROCEDURE , Learning Control. >
- Perform the inspection at the end of repair work, and make sure there is no faulty as below:
- Excessive shift shock
- Oil leakage from the transmission body, etc.
- Occurrence of noise caused by interference etc.
