Front Differential Assembly: Installation

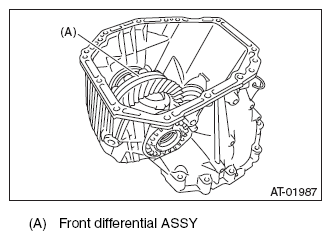

- When installing the front differential assembly to the case, be careful not to damage the inside of case (particularly, the differential side retainer mating surface).
- Install the O-ring to left and right side retainers.NOTE: Use new O-rings.
- Using the ST, install the side retainer. < Ref. to
ADJUSTMENT , Front Differential Assembly. >
ST 18630AA010 WRENCH COMPL RETAINER
- Adjust the backlash of the front differential. < Ref. to ADJUSTMENT , Front Differential Assembly. >

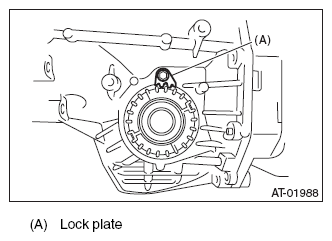

- Install the lock plate.
Tightening torque:
25 N.m (2.5 kgf-m, 18.4 ft-lb)
- Install the converter case to the transmission case. < Ref. to INSTALLATION , Converter Case. >
- Install the transmission harness connector to the stay.
- Install the ATF AT pipe. < Ref. to INSTALLATION , ATF Cooler Pipe and Hose. >
- Install the torque converter assembly. < Ref. to INSTALLATION , Torque Converter Assembly. >
- Install the transmission assembly to the vehicle. < Ref. to INSTALLATION , Automatic Transmission Assembly. >
