Spark Plug: Replacement
- Remove the battery and battery carrier.
- Remove the air cleaner case.

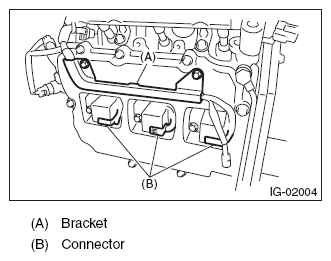

- Detach the connector from ignition coil.
- Remove the ignition coil.
- Remove the spark plug with a spark plug socket.
- Tighten the new spark plug lightly with hand, and then secure with a spark plug socket to the specified torque.NOTE:
- Be sure to place the gasket between the cylinder head and spark plug.
- If the torque wrench is not available, tighten the spark plug until gasket contacts cylinder head; then tighten further 1/4 to 1/2 turns.
Recommended spark plug:
NGK: SILFR6C11
Tightening torque:
21 N.m (2.1 kgf-m, 15.5 ft-lb)
- Install the ignition coil.
Tightening torque: 16 N.m (1.6 kgf-m, 11.8 ft-lb)
