2014 Subaru TribecaFACTORY OEM SERVICE PROCEDURE

Brake Fluid: Replacement

CAUTION:
  • Do not let brake fluid come into contact with the painted surface of the vehicle body and exhaust pipe. Wash away with water immediately and wipe off if it is spilled by accident.
  • Avoid mixing brake fluid of different brands to prevent fluid performance from degrading.
  • Be careful not to allow dirt or dust to enter the reservoir tank.
  • While bleeding air, keep the reservoir tank filled with brake fluid to prevent entry of air.
  • Operate the brake pedal slowly.
  • For convenience and safety, two people should do the work.
  1. Either jack-up the vehicle and place a rigid rack under it, or lift up the vehicle.
  2. Remove all the wheels.
  3. Drain the brake fluid from master cylinder.
  4. Refill the reservoir tank with recommended brake fluid.

    Recommended brake fluid:Β

    Refer to "Recommended Materials" service information. < Refer to Β FLUIDΒ Β , RECOMMENDED MATERIALS, Recommended Materials. >Β

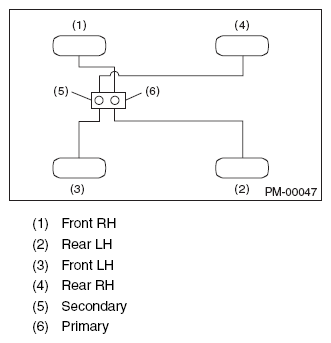

    Bleeding sequence (1) β†’ (2) β†’ (3) β†’ (4)

    Fig 1: Identifying Brake Fluid Bleeding Sequence
    G08543795Courtesy of SUBARU OF AMERICA, INC.
  5. Install one end of a vinyl tube onto the air bleeder and insert the other end of the tube into a container to collect the brake fluid.
    Fig 2: Collecting Brake Fluid
    G04987789Courtesy of SUBARU OF AMERICA, INC.
