Throttle Sensor (Method With Circuit Tester)
- Disconnect the ground cable from battery.
- Remove the front pillar lower trim and console side panel lower RH of passenger's side.
- Detach the floor mat of passenger's seat.
- Remove the protect cover.
- Remove the ECM from vehicle.
- Turn the ignition switch to ON. (engine OFF)

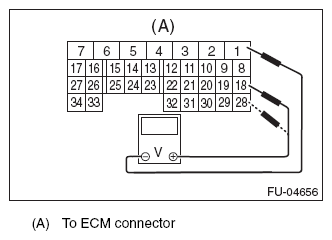

- Measure the voltage between ECM connector terminals.
Throttle sensor Accelerator pedal Terminal No. Standard Main Not depressed (Full closed) 18 (+) and 1 (-) Approx. 0.6 V Depressed (Full opened) Approx. 4.04 V Sub Not depressed (Full closed) 28 (+) and 1 (-) Approx. 1.48 V Depressed (Full opened) Approx. 4.23 V - After inspection, install the related parts in the reverse order of removal.
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
