2014 Subaru TribecaFACTORY OEM SERVICE PROCEDURE

Intake Manifold

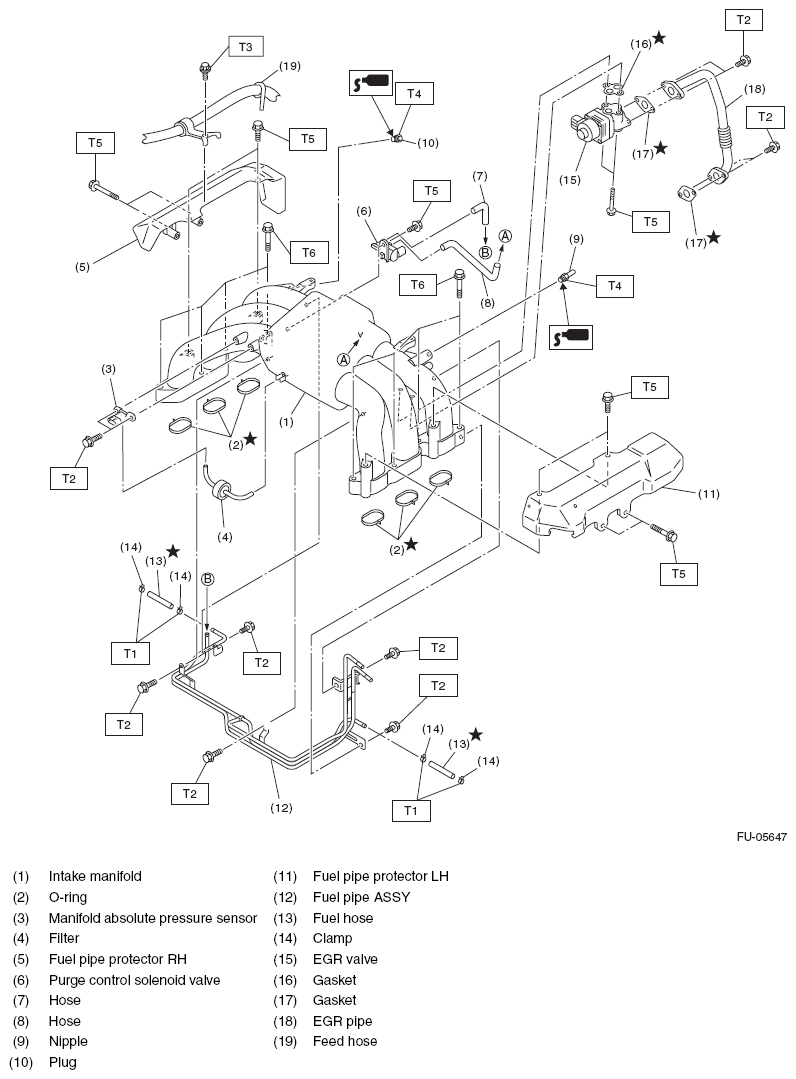

Fig 1: Intake Manifold Replacement Components With Torque Specifications
G08543824Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1.25 (0.1, 0.9)

T2: 6.4 (0.7, 4.7)

T3: 13 (1.3, 9.6)

T4: 17 (1.7, 12.5)

T5: 19 (1.9, 14.0)

T6: 25 (2.5, 18.4)
