Fuel Tank: Installation
- Install the fuel tank to the vehicle.WARNING: A helper is required to perform this work.
- Lift the fuel tank with the transmission jack.
- Mount the fuel tank to the vehicle with a jack.
- Install the fuel tank band that holds the fuel tank.
Tightening torque:
33 N.m (3.4 kgf-m, 24.3 ft-lb)

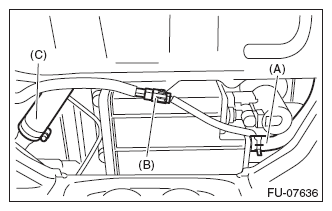

- Connect purge hose (A), connector (B) and fuel filler hose (C).
Tightening torque:
2.5 N.m (0.3 kgf-m, 1.8 ft-lb)
