2014 Subaru TribecaFACTORY OEM SERVICE PROCEDURE
LH Side
- Remove the collector cover.
- Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
- Remove the battery and battery carrier. < Ref. to REMOVAL , Battery. >
- Open the fuel filler lid and remove the fuel filler cap.

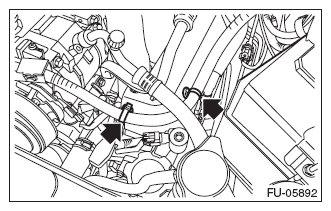

- Remove the securing clips from the two locations on the fuel pipe protector LH.

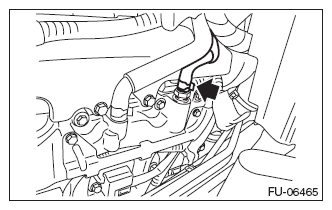

- Disconnect the PCV hose.
- Remove the fuel pipe protector LH.
- Disconnect the connector from fuel injector.
- Remove the bolt which holds fuel injector pipe onto cylinder head.
- Remove the fuel injector while lifting up the fuel injector pipe.
