Crankshaft Position Sensor (Method With Oscilloscope)
- Prepare an oscilloscope.
- Disconnect the ground cable from battery.
- Remove the front pillar lower trim and console side panel lower RH of passenger's side.
- Detach the floor mat of passenger's seat.
- Remove the protect cover.
- Remove the ECM from vehicle.

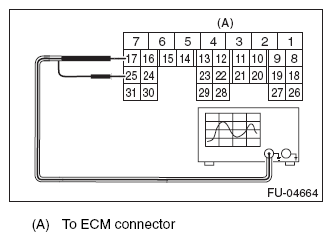

- Connect the probe to ECM connector.
Terminal No. Probe 17 + 25 - - Start the engine and let it idle.

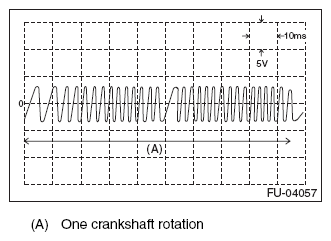

- Check the pattern is the same as the waveform and voltage shown below.
- After inspection, install the related parts in the reverse order of removal.
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
