2014 Subaru TribecaFACTORY OEM SERVICE PROCEDURE
Front ABS Wheel Speed Sensor: Removal
- Disconnect the ground cable from the battery.

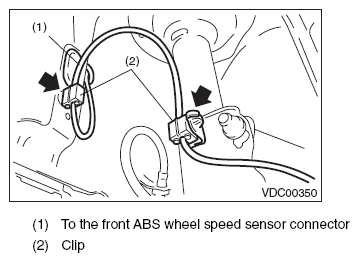

- Disconnect the ABS wheel speed sensor connector in the engine compartment.
- Remove the sensor harness from the clip.
- Remove the clip which secures the sensor harness to the front strut.
- Remove the front ABS wheel speed sensor from housing.CAUTION:
- Be careful not to damage the sensor.
- Do not apply excessive force to the sensor harness.
