2014 Subaru Outback 2.5i, Standard Trans

Fuel Tank

2014 Subaru Outback 2.5i, Standard TransSECTION Fuel Tank

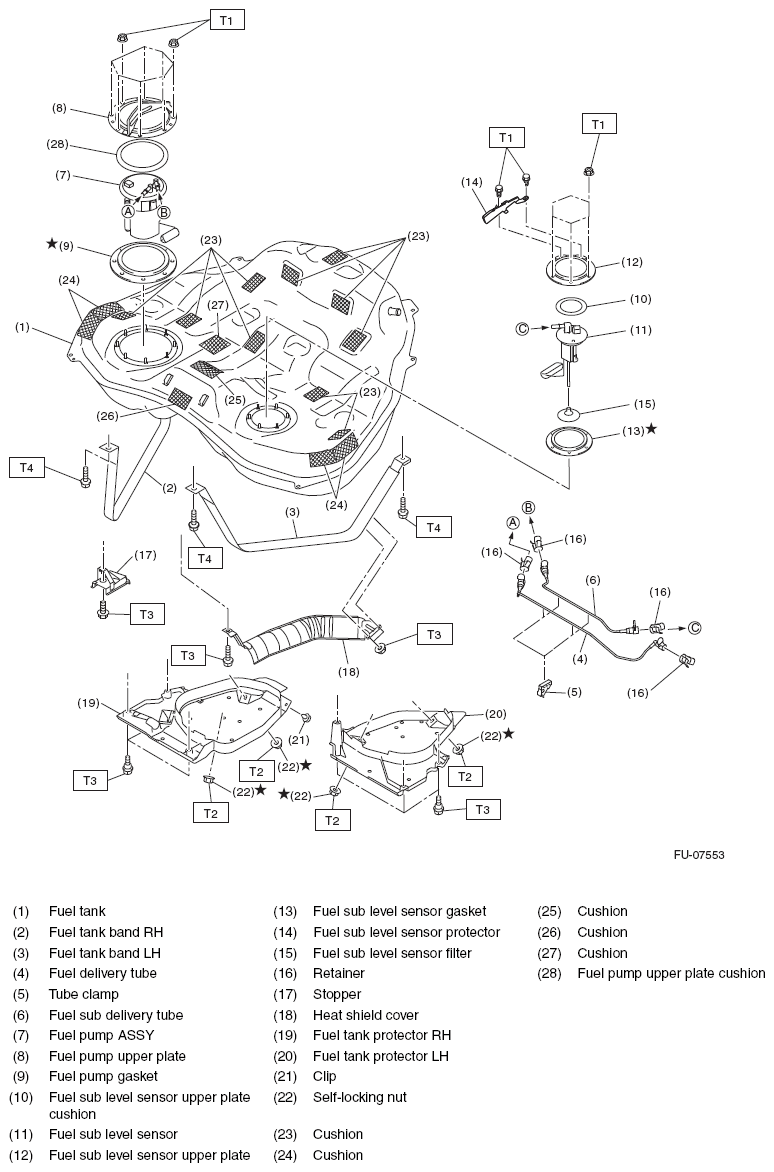

Fig 1: Fuel Tank Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 4.4 (0.4, 3.2)

T2: 9 (0.9, 6.6)

T3: 18 (1.8, 13.3)

T4: 33 (3.4, 24.3)
