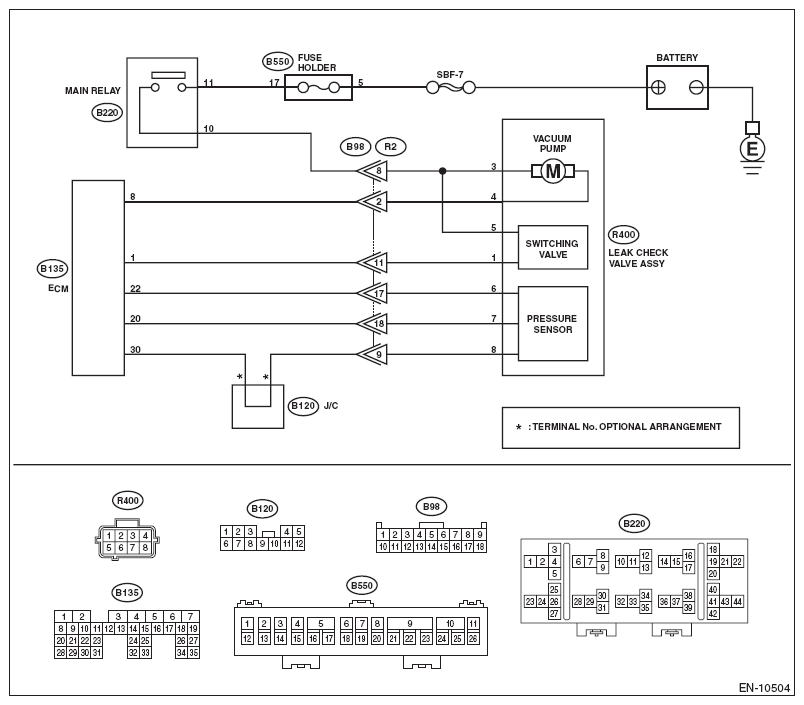

DTC P2402: Evaporative Emission System Leak Detection Pump Control Circuit High: Wiring Diagram
- Engine electrical system non-turbo model (without push button start) < Ref. to NON-TURBO MODEL (WITHOUT PUSH BUTTON START) , WIRING DIAGRAM, Engine Electrical System. >
- Engine electrical system non-turbo model (with push button start) < Ref. to NON-TURBO MODEL (WITH PUSH BUTTON START) , WIRING DIAGRAM, Engine Electrical System. >
| Step | Check | Yes | No |
|---|---|---|---|
1 CHECK HARNESS BETWEEN ECM AND LEAK CHECK VALVE ASSEMBLY CONNECTOR
.
|
Is the voltage 10 V or more? | Repair the short circuit to power in harness between ECM and leak check valve assembly connector. | Go to step 2 . |
2 CHECK LEAK CHECK VALVE ASSEMBLY
.
|
Is the vacuum pump of the leak check valve assembly OK? | Repair the poor contact in the leak check valve assembly connector. | Replace the leak check valve assembly. < Ref. to LEAK CHECK VALVE ASSEMBLY . > |
