Injector Assembly (FA20/Port Fuel Injection): Removal

(Refer to REMOVAL )

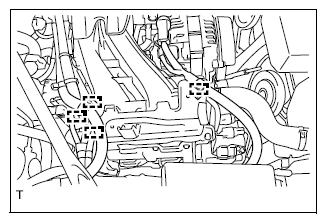

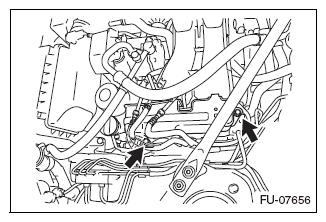

1. Release the four clamps and disconnect the wiring harness.
   Fig 1: Identifying Wiring Harness Clamps

   Courtesy of SUBARU OF AMERICA, INC.

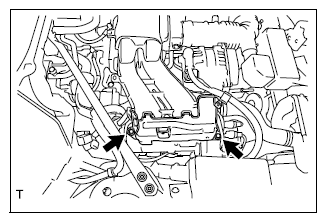

2. Remove the 2 bolts, and remove the intake manifold protector (bank 1 side).
   Fig 2: Locating Intake Manifold Protector Mounting Bolts (Bank 1 Side)

   Courtesy of SUBARU OF AMERICA, INC.

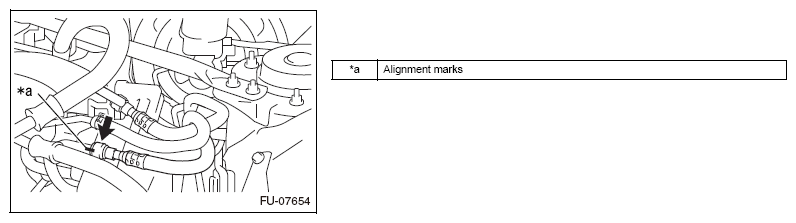

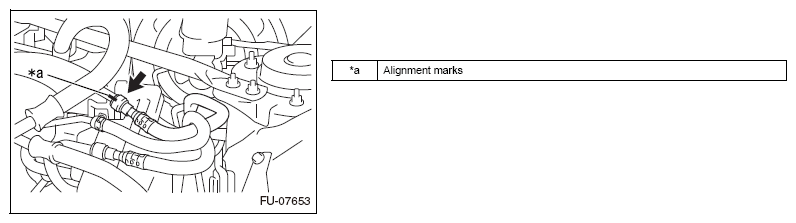

1. Put an alignment mark on the fuel hose No. 1.
   Fig 3: Locating Alignment Mark On Fuel Hose No. 1

   Courtesy of SUBARU OF AMERICA, INC.
2. Disconnect the fuel hose NO. 1 with the SST. (Refer to PRECAUTIONS  )

   SST 42099AE000

1. Put an alignment mark on the fuel hose No. 2.
   Fig 4: Locating Alignment Mark On Fuel Hose No. 2

   Courtesy of SUBARU OF AMERICA, INC.
2. Disconnect the fuel hose NO. 2 with the SST. (Refer to PRECAUTIONS  )

   SST 42099AE000

1. Move the hose clamp and disconnect the purge hose.
   Fig 5: Locating Purge Hose Clamp

   Courtesy of SUBARU OF AMERICA, INC.

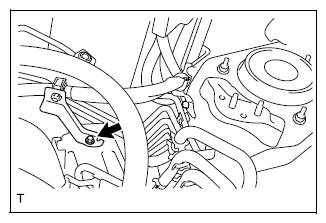

1. Remove the bolt and disconnect the wiring harness clamp bracket.
   Fig 6: Locating Wiring Harness Clamp Bracket Mounting Bolt

   Courtesy of SUBARU OF AMERICA, INC.
2. Remove the 2 bolts, and remove the intake manifold protector (bank 2 side).
   Fig 7: Locating Intake Manifold Protector Mounting Bolts (Bank 2 Side)

   Courtesy of SUBARU OF AMERICA, INC.

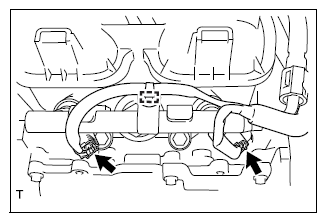

1. Disconnect the two fuel injector assembly connectors.
2. Release the clamp and disconnect the wiring harness.
   Fig 8: Locating Fuel Injector Assembly Connectors

   Courtesy of SUBARU OF AMERICA, INC.

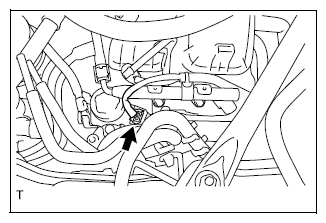

3. Disconnect the fuel pump connector.
   Fig 9: Locating Fuel Pump Connector

   Courtesy of SUBARU OF AMERICA, INC.

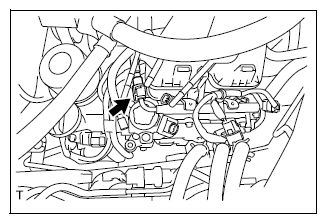

4. Disconnect the fuel delivery pipe NO. 3 from the fuel delivery pipe (bank 2 side). (Refer to PRECAUTIONS  )
   Fig 10: Locating Fuel Delivery Pipe No. 3

   Courtesy of SUBARU OF AMERICA, INC.

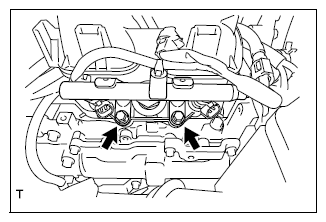

5. Remove the 2 bolts and remove the fuel delivery pipe (bank 2 side) by pulling up it along the axis line of fuel injector assembly.
   Fig 11: Locating Fuel Delivery Pipe Mounting Bolts (Bank 2 Side)

   Courtesy of SUBARU OF AMERICA, INC.

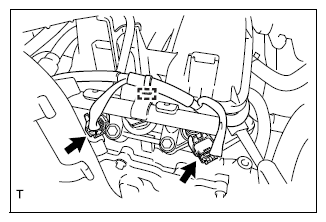

1. Disconnect the two fuel injector assembly connectors.
2. Release the clamp and disconnect the wiring harness.
3. Disconnect the fuel delivery pipe NO. 3 from the fuel delivery pipe (bank 1 side). (Refer to PRECAUTIONS  )
   Fig 12: Locating Fuel Injector Assembly Connectors

   Courtesy of SUBARU OF AMERICA, INC.

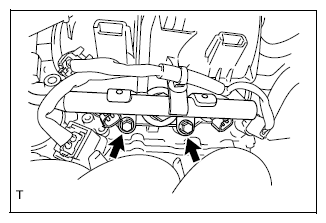

4. Remove the 2 bolts and remove the fuel delivery pipe (bank 1 side) by pulling up it along the axis line of fuel injector assembly.
   Fig 13: Locating Fuel Delivery Pipe Mounting Bolts (Bank 1 Side)

   Courtesy of SUBARU OF AMERICA, INC.

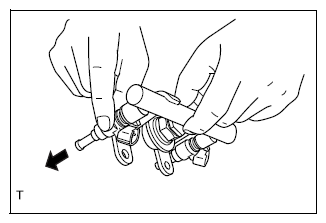

1. Remove the fuel injector assembly from the fuel delivery pipe.
   Fig 14: Removing Fuel Injector Assembly From Fuel Delivery Pipe

   Courtesy of SUBARU OF AMERICA, INC.
