2014 Subaru BRZ PremiumFACTORY OEM SERVICE PROCEDURE

Injector Assembly (FA20/Direct Fuel Injection): Installation

Fuel injector seal installation
1. Use the engine conditioner to remove the carbon on engine oil on the side surface and seal groove of injector shown in the figure.

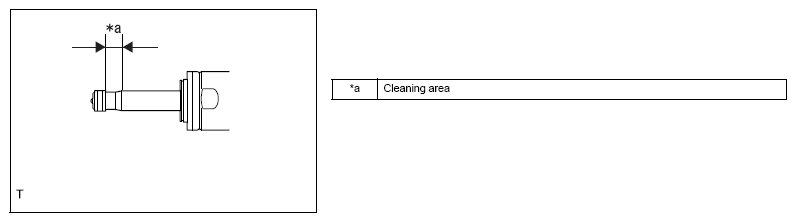

  Fig 1: Identifying Fuel Injector Seal Cleaning Area
  Courtesy of SUBARU OF AMERICA, INC.
