2014 Subaru BRZ PremiumFACTORY OEM SERVICE PROCEDURE
Fuel Tank Assembly (FA20): Removal
- Fuel spill prevention procedure (Refer to PRECAUTIONS )
- Fuel draining (Refer to REMOVAL )
- Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
- Separate type rear seat cushion assembly RH removal (Refer to REMOVAL )
- Separate type rear seat cushion assembly LH removal (Refer to REMOVAL )
- Rear floor service hole cover removal

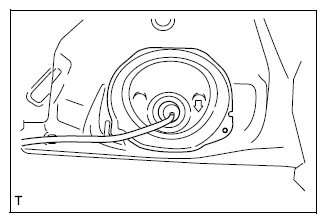

- Push in the grommet to remove the grommet from the rear floor service hole cover.

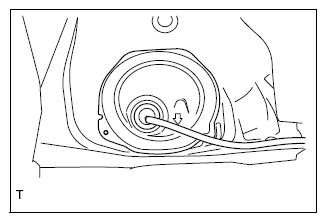

- Remove the butyl tape and remove the rear floor service hole cover.

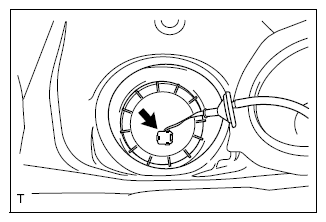

- Disconnect the fuel sub sender gauge connector.
- Rear floor service hole cover NO. 2 removal
- Push in the grommet to remove the grommet from the rear floor service hole cover NO. 2.
- Remove the butyl tape and remove the rear floor service hole cover NO. 2.

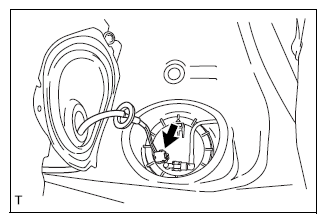

- Disconnect the fuel pump connector.
- Disconnect the fuel delivery tube. (Refer to PRECAUTIONS
)CAUTION: Be careful not to spill fuel.
