2014 Subaru BRZ PremiumFACTORY OEM SERVICE PROCEDURE

Unit Inspection

Fuel pump assembly check

Visual inspection
1. Check that the fuel pump assembly has no deformation, cracks or other damages.

Resistance check

Measure the resistance between the fuel pump (high pressure side) terminals.

RESISTANCE

Inspection terminals	Inspection conditions	Standard value
1 - 2	20°C {68°F}	0.45 to 0.55 Ω

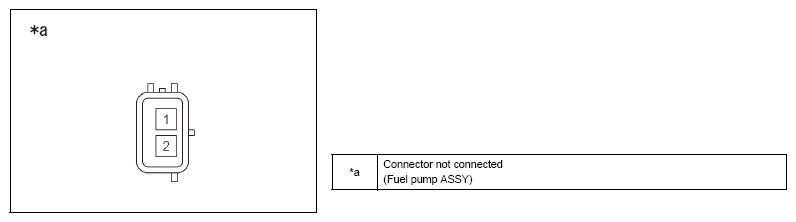

Fig 1: Identifying Fuel Pump Assembly Connector Terminals

Courtesy of SUBARU OF AMERICA, INC.
