2014 Subaru BRZ PremiumFACTORY OEM SERVICE PROCEDURE
Unit Inspection
- Inspect the battery current sensor assembly.

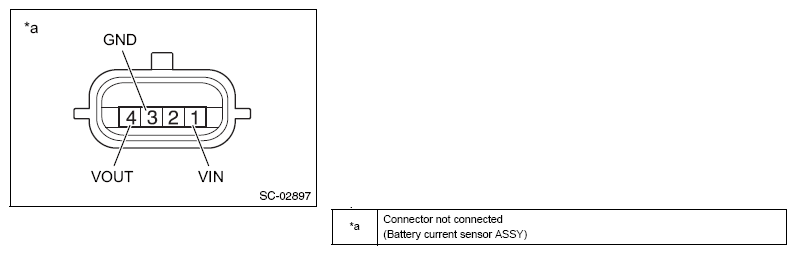

- Resistance check (Battery current sensor assembly).
- Measure the resistance between the terminals.

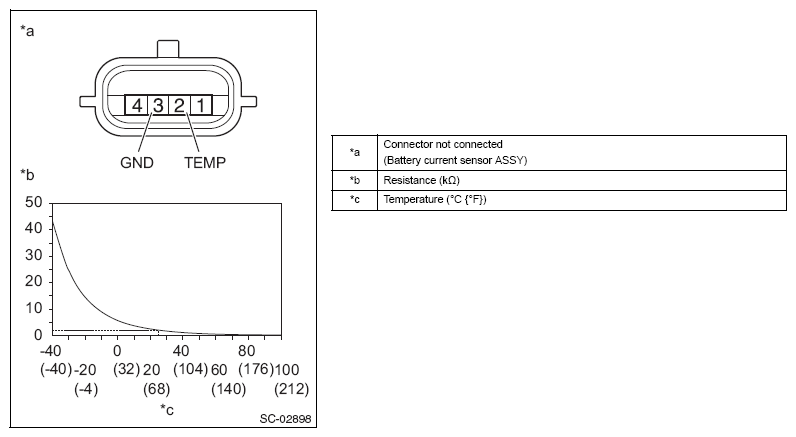

RESISTANCEInspection terminals Tester positive - Tester negative Inspection conditions Standard value 1(VIN) - 3(GND) Always 3 - 10 kΞ© 1(VIN) - 4(VOUT) Always 0.5 kΞ© or less 3(GND) - 4(VOUT) Always 3 - 10 kΞ© - Resistance check (Battery thermometer sensor).
- Measure the resistance between the terminals.
RESISTANCEInspection terminals Inspection conditions Standard value 2(TEMP) - 3(GND) 20 - 30Β°C {68 - 86Β°F} 1.5 - 2.6 kΞ©
- Resistance check (Battery current sensor assembly).
