2013 Subaru TribecaFACTORY OEM SERVICE PROCEDURE

Select Lever: Assembly

Clean all the parts before assembly.
Apply specified greases or equivalent to each part.
- Multemp AC-D or equivalent

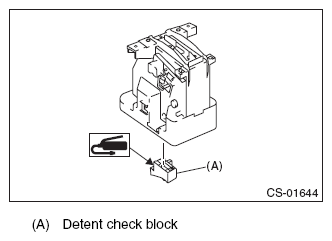

  Fig 1: Identifying Grease Applying Areas (Multemp AC-D)
  Courtesy of SUBARU OF AMERICA, INC.
- Multemp SH-W or equivalent

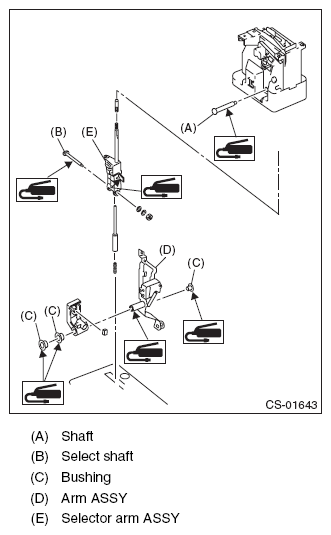

  Fig 2: Identifying Grease Applying Areas (Multemp SH-W)
  Courtesy of SUBARU OF AMERICA, INC.
- Permalube BAN-5 or equivalent

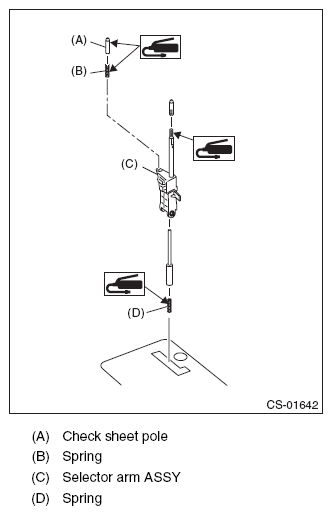

  Fig 3: Identifying Grease Applying Areas (Permalube BAN-5)
  Courtesy of SUBARU OF AMERICA, INC.
Assemble in the reverse order of disassembly.
NOTE:
- Refer to "COMPONENT" for each tightening torque. < Ref. to AT SELECT LEVER , COMPONENT, General Description. >
- When pressing in the shift position pin, insert from the left side of the vehicle.
- Affix the harness of the shift button switch and the mode change switch at the marked positions.

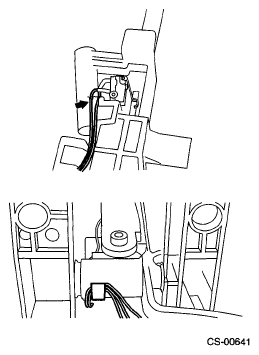

  Fig 4: Identifying Shift Button Switch And Mode Change Switch Harness
  Courtesy of SUBARU OF AMERICA, INC.
- Connect the terminals of all switches to the respective connectors.
