Select Cable: Adjustment
- Shift the select lever to "N" range.
- Remove the rear exhaust pipe and muffler. < Ref. to REMOVAL , Rear Exhaust Pipe. > < Ref. to REMOVAL , Muffler. >
- Remove the heat shield cover.

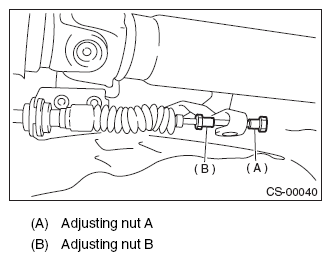

- Loosen the adjusting nuts on both sides.

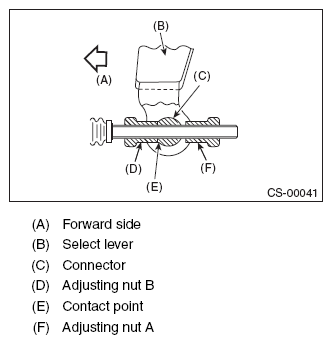

- With the select lever pushed towards the rear of the vehicle, turn the adjustment nut B until it just contacts the connector. Then loosen the nut for a half a turn.

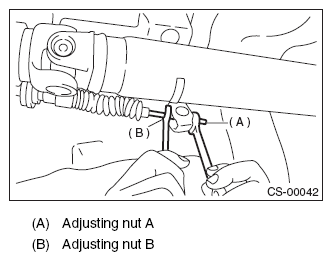

- Set a spanner wrench to adjusting nut B so that it does not rotate, and then tighten the adjusting nut A.
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
- After the completion of adjustment, confirm that the select lever operates normally at all ranges.
- Install in the reverse order of removal.
