Brake Servo System
- With the engine off, depress the brake pedal several times applying the same pedal force. Make sure the travel distance should not change.
- With the brake pedal depressed, start the engine. Make sure the pedal should move slightly toward the floor.
- With the brake pedal depressed, stop the engine and keep the pedal depressed for 30 seconds. Make sure the pedal height should not change.

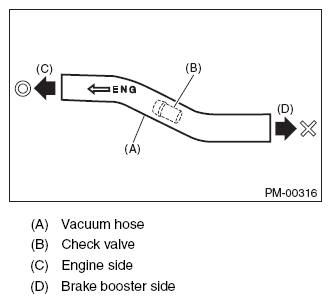

- A check valve is incorporated into the vacuum hose part. Disconnect the vacuum hose to inspect function of check valve.
Make sure air flows from the booster end to engine end but does not flow in the opposite direction in the check valve.
- Check the vacuum hose for cracks or other damage.CAUTION:
When installing the vacuum hose on the engine and brake booster, do not use soapy water or lubricating oil on their connections.
- Check the vacuum hose to make sure it is tightly secured.
