Install the engine harness to fuel injector pipe LH.

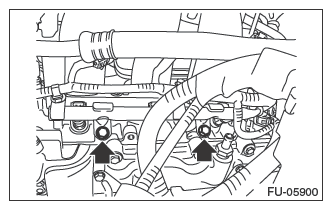

Fig 1: Locating Engine Harness Clamps Fuel Injector Pipe LH
Courtesy of SUBARU OF AMERICA, INC.
Install the engine harness to fuel injector pipe RH.

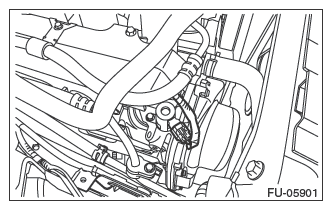

Fig 2: Locating Engine Harness Clamps Fuel Injector Pipe RH
Courtesy of SUBARU OF AMERICA, INC.
Install the intake manifold onto cylinder heads.
NOTE: Use new O-rings.

Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)
- RH side

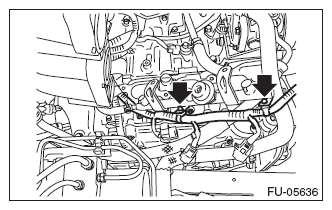

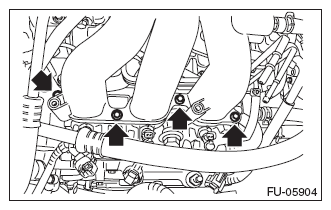

  Fig 3: Locating Intake Manifold Bolts (RH Side)
  Courtesy of SUBARU OF AMERICA, INC.
- LH side

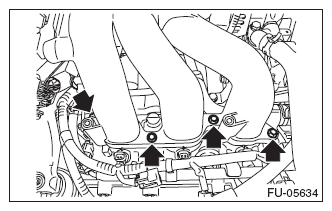

  Fig 4: Locating Intake Manifold Bolts (LH Side)
  Courtesy of SUBARU OF AMERICA, INC.
Install the EGR pipe securing bolt.
NOTE: Use a new gasket.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

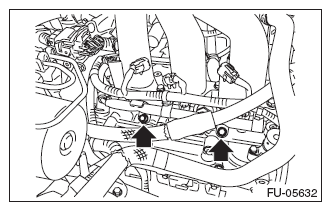

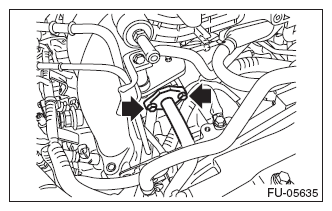

Fig 5: Locating EGR Pipe Securing Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the bolts which hold fuel injector pipe RH to cylinder head.
NOTE: Use new O-rings, injection rubbers, and seal rings.

Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

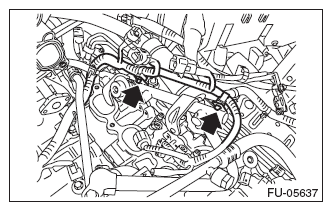

Fig 6: Locating Bolts Holding Fuel Injector Pipe RH To Cylinder Head
Courtesy of SUBARU OF AMERICA, INC.
Connect #1, #3, and #5 fuel injector connectors.
Install the fuel pipe protector RH.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

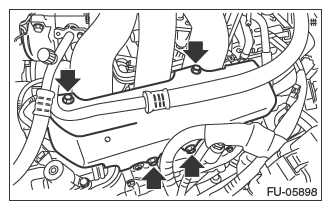

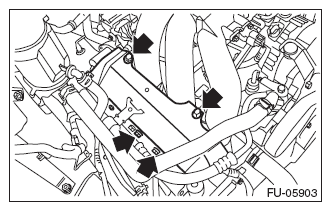

Fig 7: Locating Fuel Pipe Protector Bolts (RH)
Courtesy of SUBARU OF AMERICA, INC.
Install the feed hose to fuel pipe protector RH.
Tightening torque:

13 N.m (1.3 kgf-m, 9.6 ft-lb)

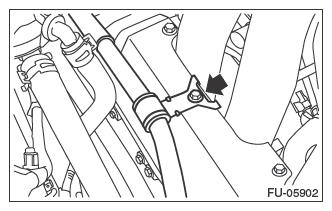

Fig 8: Locating Feed Hose Clamp Bolt
Courtesy of SUBARU OF AMERICA, INC.
Connect the connectors of the intake oil flow control solenoid valve RH.

Fig 9: Identifying Intake Oil Flow Control Solenoid Valve Connector (RH)
Courtesy of SUBARU OF AMERICA, INC.
Install the bolts which hold fuel injector pipe LH to cylinder head.
NOTE: Use new O-rings, injection rubbers, and seal rings.

Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Fig 10: Locating Bolts Holding Fuel Injector Pipe LH To Cylinder Head
Courtesy of SUBARU OF AMERICA, INC.
Connect the connectors of the oil temperature sensor, engine coolant temperature sensor and intake oil flow control solenoid valve LH.

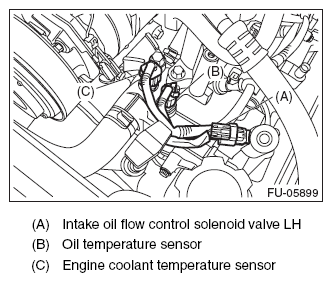

Fig 11: Identifying Intake Oil Flow Control Solenoid Valve LH, Oil Temperature And Engine Coolant Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.
Connect #2, #4, and #6 fuel injector connectors. (B)
Install the fuel pipe protector LH.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Fig 12: Locating Fuel Pipe Protector Bolts (LH)
Courtesy of SUBARU OF AMERICA, INC.
Connect the fuel delivery hose (A) and evaporation hose (B).
NOTE: If fuel hoses or clamps are damaged, replace them with new parts.
