2013 Subaru TribecaFACTORY OEM SERVICE PROCEDURE

Steering Angle Sensor: Replacement

CAUTION:
  • Do not perform the removal except when the replacement.
  • When replacing three times or more, replace the combination switch as assembly to protect the threads.
  1. Set the steering wheel in a straight-ahead position.
  2. Disconnect the ground cable from the battery.
  3. Remove the airbag module.

    < Ref. to REMOVAL , Driver's Airbag Module. >

    WARNING: Always refer to "Airbag System" when performing the airbag module repair service.
    < Ref. to CAUTION , General Description. >
  4. Remove the steering wheel.

    < Ref. to REMOVAL , Steering Wheel. >

  5. Remove the screws and remove the steering column lower cover.
  6. Remove the two screws securing the steering column upper cover.
  7. Unlock the harness band and disconnect the connector of the steering angle sensor.

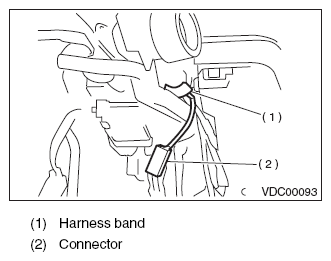

    Fig 1: Identifying Connector And Harness Band
    G08545713Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the screws which secure the roll connector to steering column.
    Fig 2: Locating Roll Connector Screws
    G05032689Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the steering angle sensor from roll connector.
    Fig 3: Locating Steering Angle Sensor Screws
    G05003591Courtesy of SUBARU OF AMERICA, INC.
  10. Turn the protrusion portion of new steering angle sensor to match the alignment mark of inspection hole.

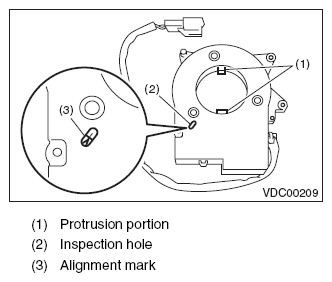

    Fig 4: Identifying Protrusion Portion, Inspection Hole And Alignment Mark
    G08545716Courtesy of SUBARU OF AMERICA, INC.
