2013 Subaru TribecaFACTORY OEM SERVICE PROCEDURE

RH Side

Remove the collector cover.
Disconnect the ground cable from battery.
Remove the air cleaner case. < Ref. to REMOVAL , Air Cleaner Case. >
Remove the engine harness stay (A).
Disconnect the connector (B) from ignition coil.

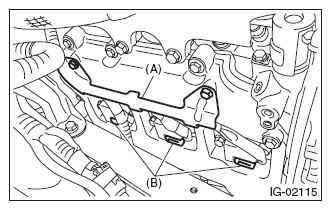

Fig 1: Identifying Engine Harness Stay And Ignition Coil Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the ignition coil.
NOTE: Turn the #5 ignition coil to remove it.
Remove the spark plug with a spark plug socket.

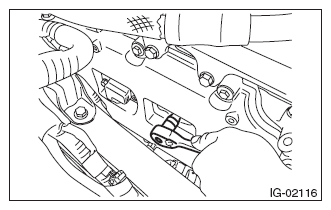

Fig 2: Removing Spark Plug Using Spark Plug Socket
Courtesy of SUBARU OF AMERICA, INC.
