Check Accelerator Pedal Sensor Area (Method With Circuit Tester)
- Remove the front pillar lower trim and console side panel lower RH of passenger's side.
- Detach the floor mat of passenger's seat.
- Remove the protect cover.
- Remove the ECM from vehicle.
- Turn the ignition switch to ON. (engine OFF)
- Measure the voltage between ECM connector terminals.

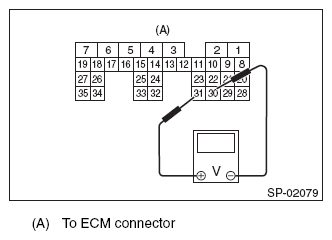

Main sensor side
Courtesy of SUBARU OF AMERICA, INC.
Sub sensor side
Courtesy of SUBARU OF AMERICA, INC.
Accelerator pedal sensor Accelerator pedal Terminal No. Standard Main Not depressed (Full closed) 23 (+) and 29 (-) 0.4 - 1.0 V Depressed (Full opened) 2.4 - 3.7 V Sub Not depressed (Full closed) 31 (+) and 30 (-) 0.3 - 1.1 V Depressed (Full opened) 2.3 - 3.8 V - After inspection, install the related parts in the reverse order of removal.
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
