Transmission Control Module (TCM): Installation
- Install the TCM to the bracket.CAUTION: Do not remove the TCM after installed to the bracket, or the bracket and TCM may be damaged. If installed by mistake, the part must be replaced with a new part.

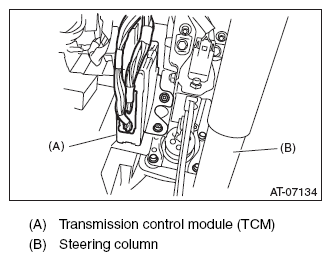

- Install the TCM.
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
- Connect the connector to TCM.
- Install the instrument panel lower cover. Refer to INSTALLATION .
- Perform Clear Memory 2 operation. Refer to CLEAR MEMORY MODE .
- Perform the diagnosis again. Refer to LEARNING CONTROL .
