Transmission Control Device: Installation
- Install the detent spring to the transmission case.
Tightening torque:
7 N.m (0.7 kgf-m, 5.2 ft-lb)
- Insert the range select lever, and tighten the bolts.
Tightening torque:
6 N.m (0.6 kgf-m, 4.4 ft-lb)

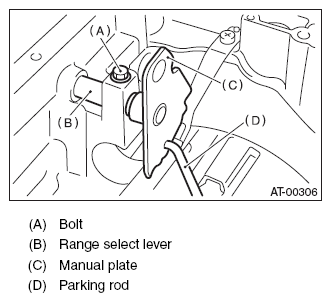

- Insert the manual plate and parking rod.
- Insert the straight pin to the manual plate.
- Install the oil pan and the control valve body assembly. Refer to INSTALLATION .
- Install the transmission hanger COMPL.
Tightening torque:
41 N.m (4.2 kgf-m, 30.2 ft-lb)
- Insert the transmission connector to the stay.
- Install the air breather hose. Refer to INSTALLATION .
- Install the torque converter assembly. Refer to INSTALLATION .
- Install the transmission assembly to the vehicle. Refer to INSTALLATION .
