2013 Subaru Outback RFACTORY OEM SERVICE PROCEDURE
Differential Case Assembly
- Remove the taper roller bearing using the ST and the press.
ST 498077000 REMOVER

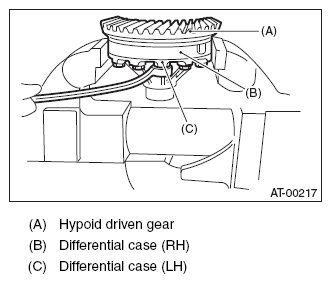

- Secure the case in a vise, remove the hypoid driven gear tightening bolts, and then separate the hypoid driven gear into case (RH) and case (LH).

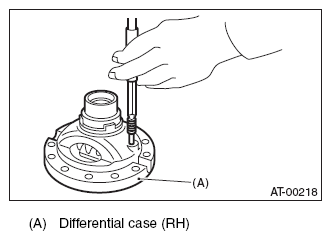

- Pull out the straight pin and shaft, and then remove the differential bevel gear, washer and differential bevel pinion.
