2013 Subaru Outback RFACTORY OEM SERVICE PROCEDURE
Transmission Control Module (TCM): Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the ground cable from battery.
- Remove the instrument panel lower cover. Refer to REMOVAL .

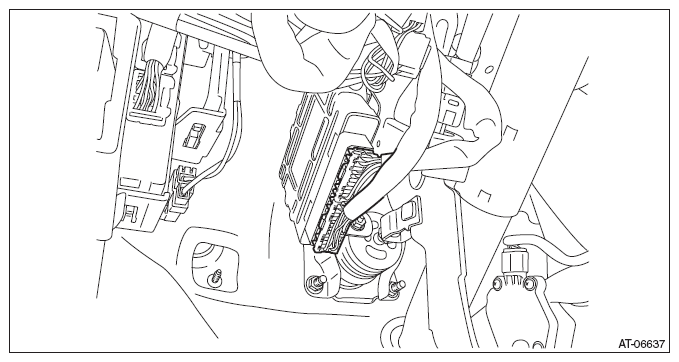

- Remove the bulkhead harness connector from TCM.
- Remove the TCM.NOTE: Replace the TCM and bracket as a set.
