Check that the manifold absolute pressure sensor has no deformation, cracks or other damages.

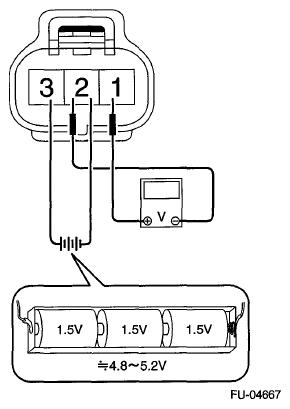

Connect dry-cell battery positive terminal to terminal No. 3 and dry-cell battery ground terminal to terminal No. 2, circuit tester ground terminal to terminal No. 2 and the circuit tester positive terminal to terminal No. 1.
NOTE:
- Use new dry-cell batteries.
- Using circuit tester, check the voltage of a single dry-cell battery is 1.6 V or more. And also check the voltage of three batteries in series is between 4.8 V and 5.2 V.

  Fig 1: Checking Manifold Absolute Pressure Sensor Deformation, Cracks And Damages
  Courtesy of SUBARU OF AMERICA, INC.
Connect the Mighty Vac to the pressure port (A) of manifold absolute pressure sensor.

Fig 2: Identifying Manifold Absolute Pressure Sensor Pressure Port
Courtesy of SUBARU OF AMERICA, INC.
Check the voltage when generating vacuum and positive pressure using Mighty Vac.
CAUTION: Do not apply vacuum of less than -88 kPa (-0.9 kgf/cm² , -12.8 psi). Doing so may damage the manifold absolute pressure sensor.
