Front Oxygen (A/F) Sensor: Installation
- Before installing front oxygen (A/F) sensor, apply anti-seize compound only to the threaded portion of front oxygen (A/F) sensor to make the next removal easier.CAUTION: Never apply anti-seize compound to the protector of front oxygen (A/F) sensor.
Anti-seize compound:
NEVER-SEEZ NSN, JET LUBE SS-30 or equivalent
- Install the front oxygen (A/F) sensor.
Tightening torque:
21 N.m (2.1 kgf-m, 15.5 ft-lb)

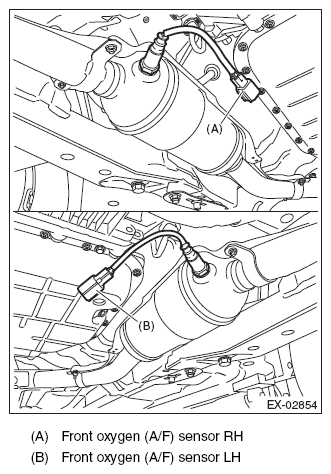

- Connect the connector (A) of front oxygen (A/F) sensor.
- Lower the vehicle.
- Connect the battery ground terminal.
