2013 Subaru Outback RFACTORY OEM SERVICE PROCEDURE
Crankshaft Position Sensor (Method With Oscilloscope)
- Prepare an oscilloscope.
- Remove the glove box lid assembly. Refer to REMOVAL .

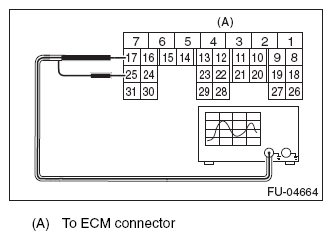

- Connect the probe to ECM connector.
Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Probe 17 + 25 - - Start the engine and let it idle.

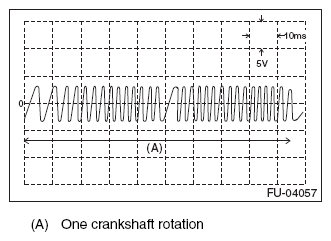

- Check that the pattern is the same as the waveform and voltage shown below.
- After inspection, install the related parts in the reverse order of removal.
