2013 Subaru Outback RFACTORY OEM SERVICE PROCEDURE
Camshaft Position Sensor (Method With Oscilloscope)
- Prepare an oscilloscope.
- Remove the glove box lid assembly. Refer to REMOVAL .

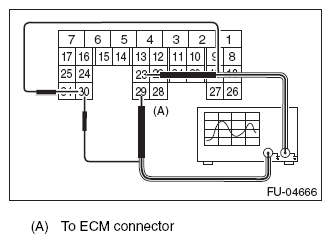

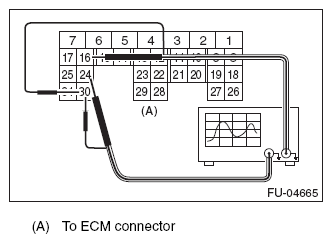

- Connect the probe to ECM connector.
- Start the engine and let it idle.

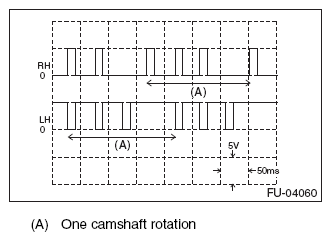

- Check that the pattern is the same as the waveform and voltage shown below.
- After inspection, install the related parts in the reverse order of removal.
