2013 Subaru Outback LimitedFACTORY OEM SERVICE PROCEDURE

Select Lever: Removal

  1. Shift the select lever to "N" range.
  2. Disconnect the ground cable from battery.
  3. Lift up the vehicle.
  4. Remove the rear exhaust pipe.
  5. Remove the heat shield cover.

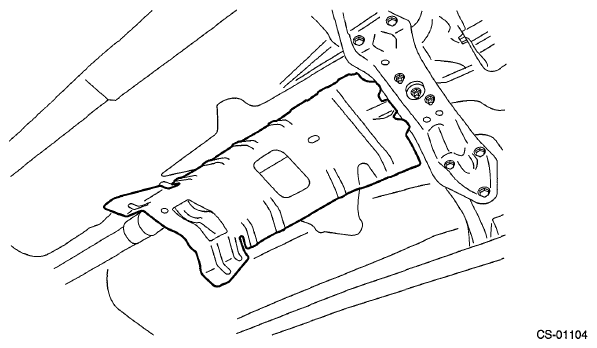

    Fig 1: Identifying Heat Shield Cover
    G06651705Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the cable from arm assembly.

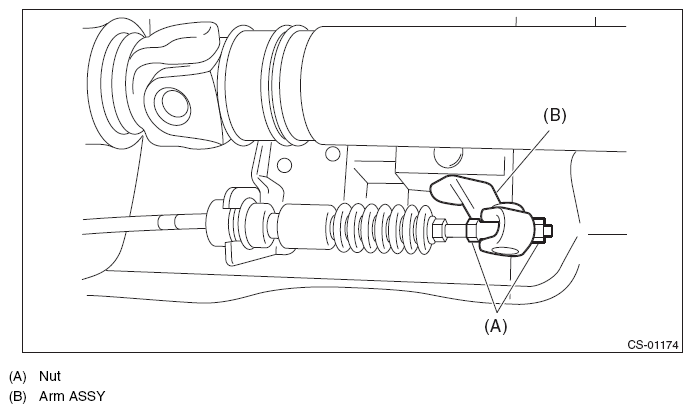

    Fig 2: Identifying Arm Assembly And Adjusting Nut
    G08578384Courtesy of SUBARU OF AMERICA, INC.
  7. Raise the claw of clamp and remove the cable.

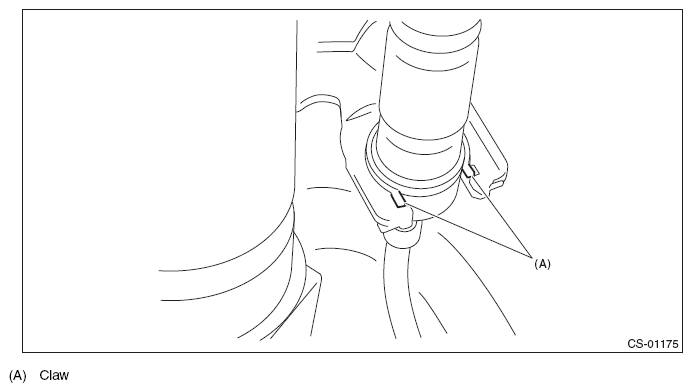

    Fig 3: Identifying Lever Clamp Claw
    G08578385Courtesy of SUBARU OF AMERICA, INC.
  8. Lower the vehicle.
  9. Lower the cover grip AT vertically toward the lever.

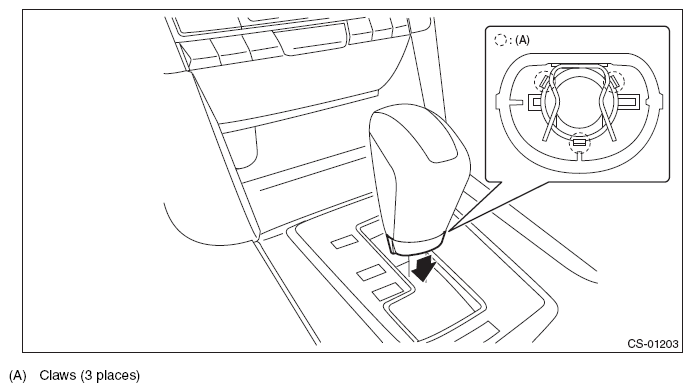

    Fig 4: Lowering Cover Grip AT Vertically Towards Lever
    G08578386Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the clamp grip pin.

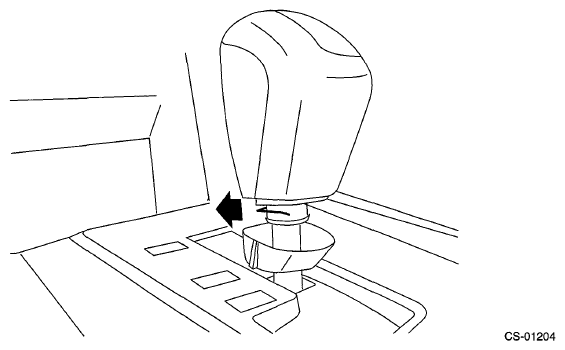

    Fig 5: Removing Clamp Grip Pin
    G06651709Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the grip assembly.

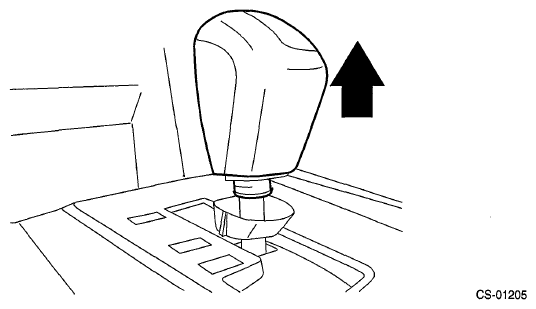

    Fig 6: Removing Grip Assembly
    G06651710Courtesy of SUBARU OF AMERICA, INC.
  12. Turn over the rubber and remove the console front cover assembly.

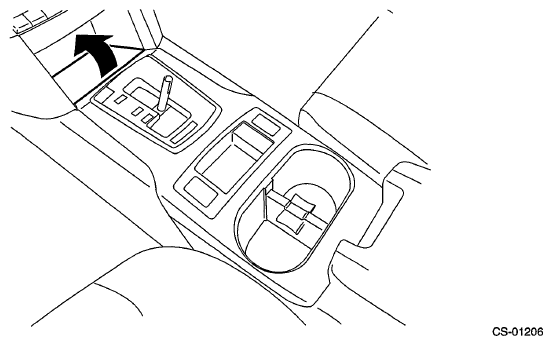

    Fig 7: Removing Console Front Cover Assembly
    G06651711Courtesy of SUBARU OF AMERICA, INC.
