Intake Manifold: Installation
- Connect the connectors to the engine, and install the engine harness.NOTE: Refer to ENGINE HARNESS for how to connect the engine harness connectors..
Tightening torque:
6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

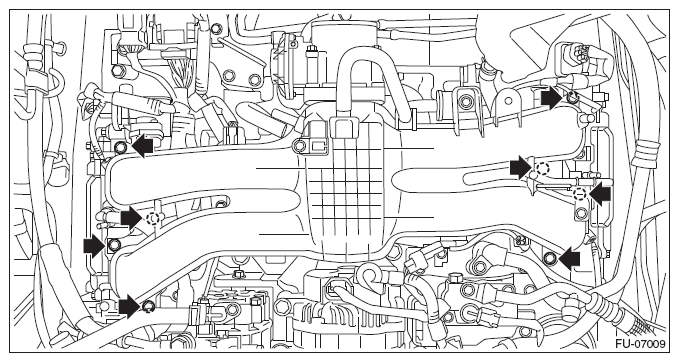

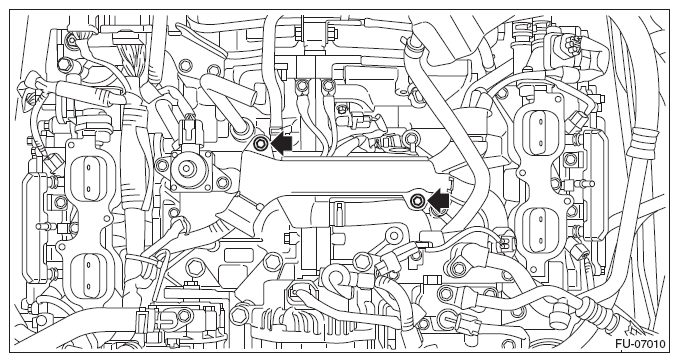

- Install the intake manifold to the tumble generator valve assembly.NOTE: Use a new gasket.
Tightening torque:
8.3 N.m (0.8 kgf-m, 6.1 ft-lb)

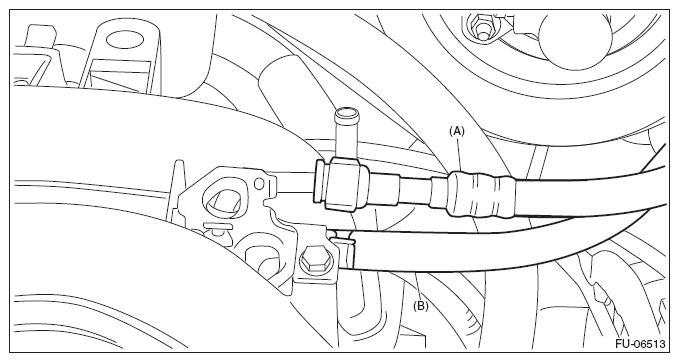

- Connect the fuel delivery hose (A) and evaporation hose (B).
- Connect the fuel delivery pipe to the fuel pipe LH.CAUTION:
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- When connecting the quick connector, make sure to insert the pipe all the way in before locking the slider.
- When it is difficult to lock the slider, check that the pipe is fully inserted.
- Make sure that the quick connector is securely connected.
