Intake Manifold: Assembly

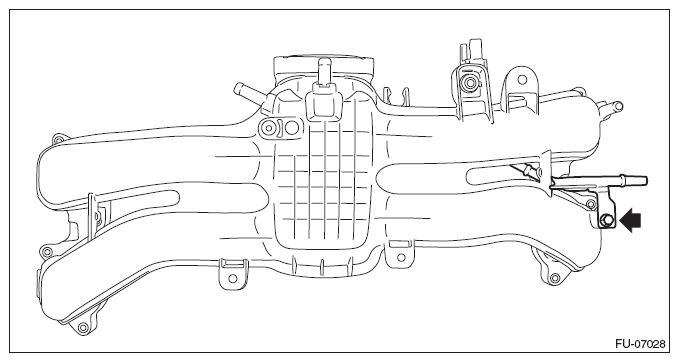

- Install the fuel pipe to the intake manifold.
Tightening torque:
6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
- Install the fuel delivery pipe to the intake manifold.CAUTION:
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- When connecting the quick connector, make sure to insert the pipe all the way in before locking the slider.
- When it is difficult to lock the slider, check that the pipe is fully inserted.
- Make sure that the quick connector is securely connected.
