Model without tire pressure monitoring system

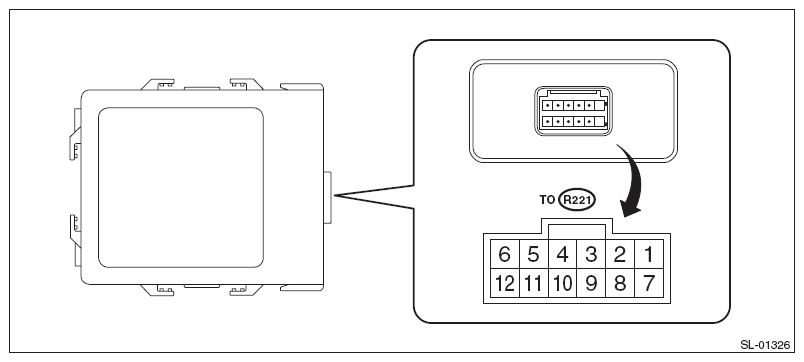

Fig 1: Identifying Keyless Entry Control Module Terminals (Model Without Tire Pressure Monitoring System)
Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Item	Measuring condition	Standard
3 (U-ART com.)	-	Cannot be measured	-
4 (+B) ↔ Chassis ground	Voltage	Always	10 - 14 V
7 (GND) ↔ chassis ground	Resistance	Always	Less than 1 Ω

Model with tire pressure monitoring system

Fig 2: Identifying Keyless Entry Control Module Terminals (Model With Tire Pressure Monitoring System)
Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Item	Measuring condition	Standard
2 ↔ Chassis ground	Voltage	Tire pressure warning light: Not illuminated → Illuminated	0 V → 10 - 14 V
3 ↔ Chassis ground	Waveform	Speedometer	Pulse generation
4 (IG) ↔ Chassis ground	Resistance	IG OFF → ON	0 V → 10 - 14 V
5 (GND) ↔ chassis ground	Resistance	Always	Less than 1 Ω
6 (+B) ↔ Chassis ground	Voltage	Always	10 - 14 V
11 (U-ART com.)	-	Cannot be measured	-
12 (SSM communication)	-	Cannot be measured	-
