Select Lever: Installation
- Set the select lever assembly to the vehicle body.

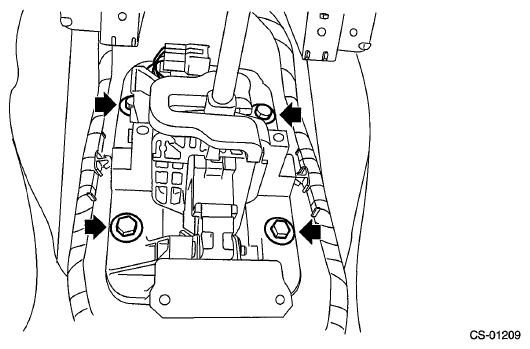

- Tighten the four mounting bolts to attach the select lever assembly to the vehicle body.
Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)

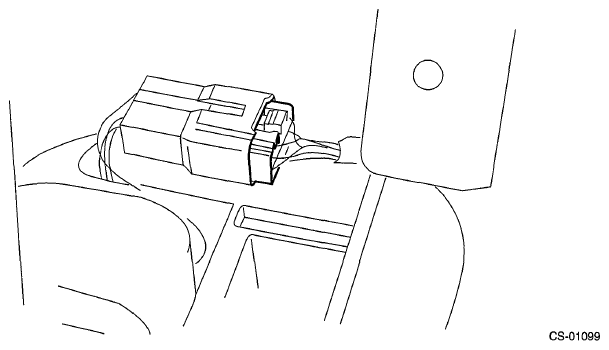

- Connect the harness connector.

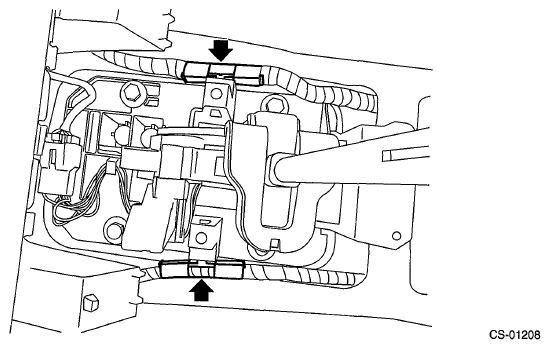

- Install the harness clip to the select lever assembly.
- Shift the select lever to "N" range.
- Install the console box and the console front cover assembly. Refer to INSTALLATION .
- Accessing from the button side of the grip, attach the clamp grip pin.
- Install the cover grip AT securely.NOTE: After installation, check that the cover grip AT cannot be detached.
