2013 Subaru Outback Base, Standard TransFACTORY OEM SERVICE PROCEDURE
At Select Lever Assembly
- Remove the spacer plate.
- Remove the gasket.
- Insert a flat tip screwdriver with a thin tip under the connector and disconnect the harness connector from the plate COMPL.

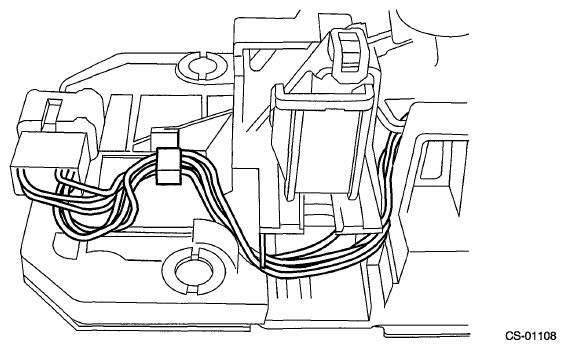

- Remove the harness from the plate COMPL.
- Raise the claw with a flat tip screwdriver with a thin tip and remove the solenoid unit.

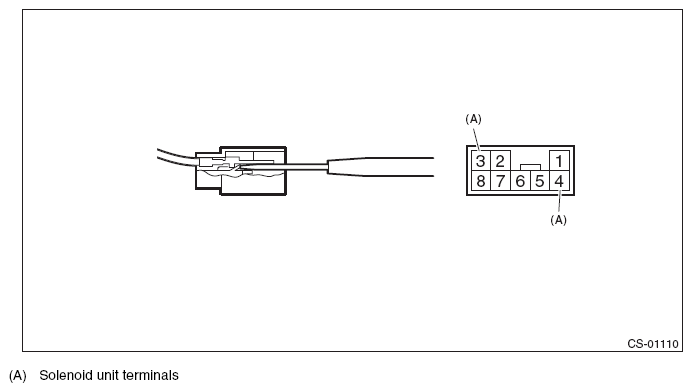

- Using a flat tip screwdriver with a thin tip, remove the solenoid unit terminals from the connector.
- Remove the clamp push nut.NOTE: Replace the clamp push nut with a new part.
