2013 Subaru Outback Base, Standard TransFACTORY OEM SERVICE PROCEDURE
MT Gear Shift Lever: Installation

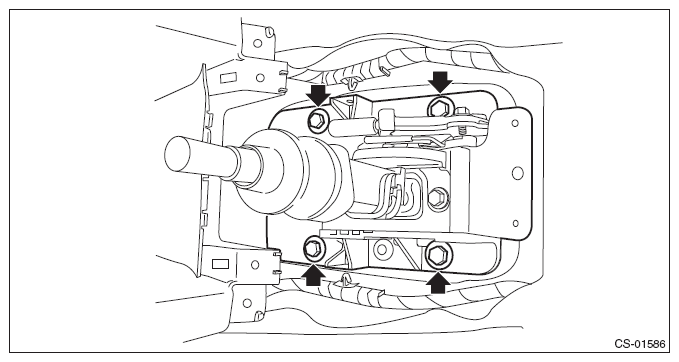

- Install the gear shift lever assembly.
Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)
- Lift up the vehicle.

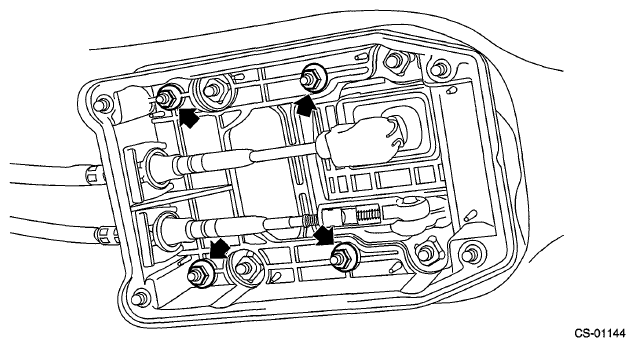

- Install the cover cable assembly.
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
- Connect the MT gear shift cable and MT gear select cable.CAUTION:
- Be careful not to deform the cable inner.
- Do not twist the cable inner excessively.
